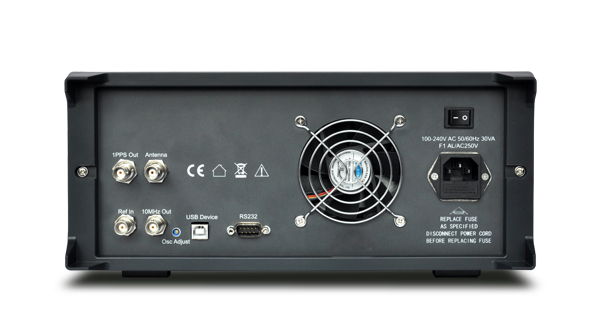

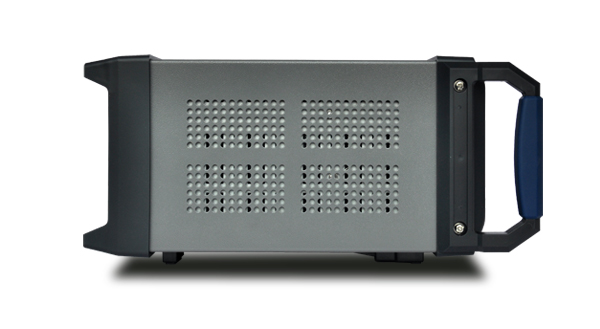

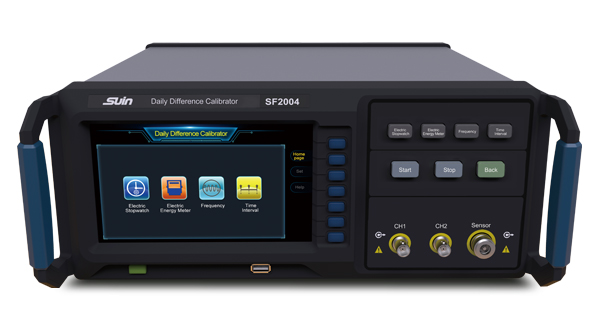

Daily Difference Calibrator
Features
* High precision OCXO are built in
* Support instantaneous measurement of daily difference, monthly difference and yearly difference
* Non-contact or contact measurement way could be selected.
* Frequency and time interval measurement function are also supported
* 7” touch screen display, voice broadcast PPM measurement result.
SF2004 Daily Difference Calibrator is a high-precision device designed for the daily calibration of atmospheric pressure sensors and automatic weather stations. It enables users to effectively monitor and correct data deviations, ensuring reliable environmental measurements. With robust construction and advanced internal algorithms, the SF2004 provides consistent performance in both laboratory and field environments.
High Calibration Accuracy: Ensures ±0.1 hPa accuracy for daily sensor calibration.
Easy Operation: One-button calibration simplifies the workflow for field technicians.
Broad Compatibility: Compatible with various automatic weather stations and data loggers.
Portable Design: Compact and lightweight, ideal for on-site calibration tasks.
Stable Performance: Suitable for use in a wide range of temperature and humidity conditions.
The SF2004 Daily Difference Calibrator is widely used in:
National and regional meteorological stations
Environmental monitoring centers
Universities and scientific research institutes
Manufacturers and integrators of weather monitoring systems
Agricultural weather networks and smart farming platforms
Specifications
| Instantaneous Daily Difference Measurement | |
| Frequency | 32.768KHz, 1Hz |
| Object | Electric Stopwatch, Electric Energy Meter, Crystal, Quartz Clock, etc. |
| Method | Non-contact or contact |
| Items | PPM, s/d, s/m, s/y |
| Range | Daily difference: -10.000 ~ +10.000 (s) |
| Monthly difference: -300.000 ~ +300.000 (s) | |
| Resolution | 0.0001s |
| Allowed Error Range | Internal frequency standard-Daily difference: ±0.01s, Monthly difference: ±0.3s |
| External frequency standard-Daily difference: ±0.001s, Monthly difference: ±0.03s | |
| Time/Frequency Measurement | |
| Resolution | Frequency: 8 digits/sTime Interval: 5ns |
| Signal Level | Pulse, TTL Level |
| Time Base Input | |
| Frequency | 5MHz or 10MHz |
| Wave | Sine |
| Amplitude | ≥1.5VP-P |
| Built-in OCXO | |
| Frequency | 10MHz |
| Daily Aging | ≤1×10-9/day |
| Power on | ≤1×10-8 |
| Frequency Accuracy | ≤1×10-7 |
| Second Stability | ≤3×10-11/s |
| General Characteristic | |
| Power | AC220 (1 )V, 50(1)Hz, <50VA |
| Work Environment | Temperature: 0~+40℃, RH:20~80% |
| Dimension &Weight | 364×155×328 mm, approx. 2KGs |
Questions & Answers
SF2004 Daily Difference Calibrator
Q: What’s the SF2004 daily difference calibrator?
A: The SF2004 daily difference calibrator is a multi-functional calibrator developed according to ‘verification regulation of JJG 488-2018 instantaneous diurnal difference meter’. The measurement way that SF2004 used is to transform the oscillating signal from the Clock to the corresponding electrical signal by using the magnetic-electro converting type sensor, then measure the difference between the period of electrical signal and the nominal value by counting method to calculate the daily difference. Additionally it can also measure the electric product which is built-in 32768Hz crystal oscillator, and directly measure the clock error of smart energy meter which output 1Hz, even the measure the frequency of Pulse and the time interval of two Pulses.
Q: What’s the application area of SF2004 daily difference calibrator?
A: According to its function, it could be used in metrology verification department, product quality inspection organization and producing company of clock and smart electric energy meter.
Standard Accessories
BNC Cable: 1
Power Cord: 1
CD (User’s Guide): 1
Sensor + Connection wire: 1
