Features:
* Real 5? digits readings resolution (119999 counts).
* 1 μV resolution
* True-RMS AC Voltage and AC Current measuring.

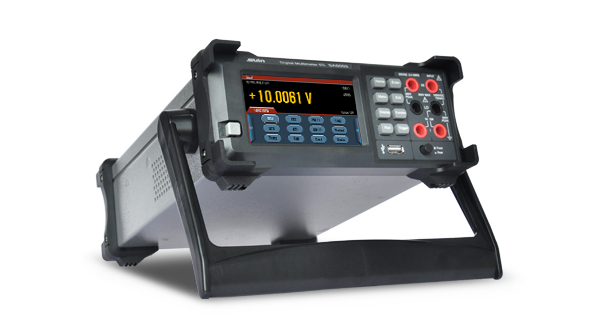

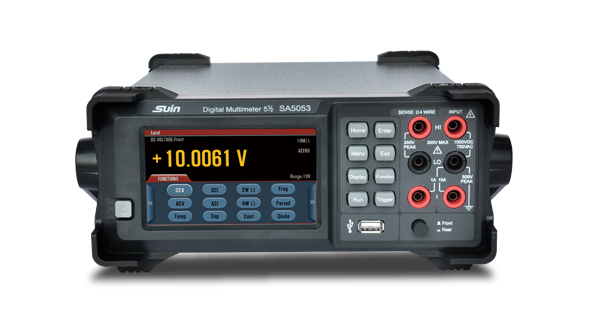

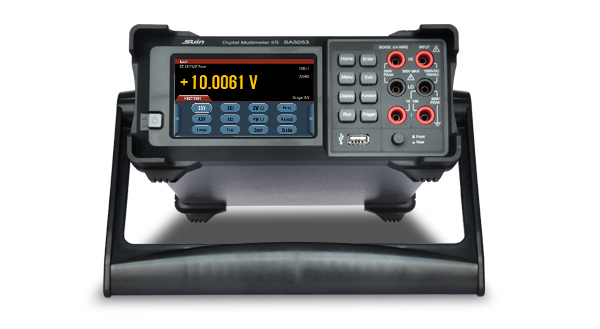

* 4.3-inch color LCD touch screen with double display for easy viewing.

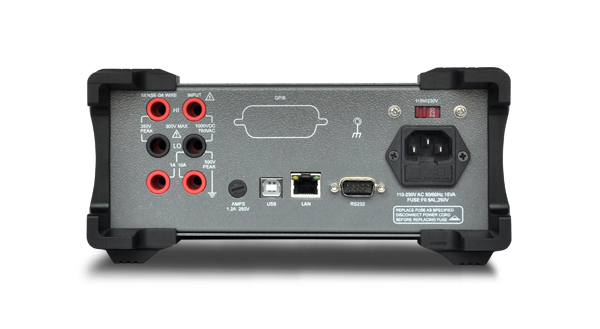

* Two sets of input interfaces front and rear, which provides convenience to arrange wires.
* In addition to numerical data display, it also features histograms, trend charts, bar charts, and statistics functions.
The digital multimeter, also known as a Volt-Ohm meter, measures electrical magnitude in different fields of electronics. Every digital multimeter has a large, clear display and fits in the palm of your hand making it versatile and easy to handle. The digital multimeter is invaluable to professional technicians due to its high level of accuracy when taking measurements of low to high voltages. The digital multimeter is used in research, in professional training and education, by technicians in the field, by the industrial sector and in workshops, by military, mechanics, and in many other electrical analysis applications.
Digital multimeters are tools designed to measure a variety of input signals, including current, voltage and resistance. They are available as benchtop units designed to support design engineers and service techs, or portable, handheld units for use in field applications.
Specifications:
| 5 ? digits | ||
| Basic Function | Range | Best Accuracy ± (% reading + % range) |
| DC Voltage | 100mV/1V/10V/100V/1000V | ± (0.012 +0.005) |
| AC Voltage | 100mV/1V/10V/100V/750V | ± (0.2 + 0.1) |
| DC Current | 100μA/1mA/10mA/100mA/1A/10A | ± (0.05+0.007) |
| AC Current | 100μA/1mA/10mA/100mA/1A/10A | ± (0.5+0.1) |
| Resistance | 100Ω/1KΩ/10KΩ/100KΩ/ | ± (0.03+0.005) |
| 1MΩ/10MΩ/100MΩ | ||
| Capacitance | 1nF/ 10nF/ 100nF/1μF/10μF/100μF | ± (0.2+0.5) |
| Frequency | 5Hz-1MHz | ± 0.02 |
| Temperature | - 200℃~ 800℃ | ± 0.2℃(without accuracy of probe) |
| Features | ||
| Reading Rate | 500 reading/s | |
| Auto Range | ● | |
| Diode | ● | |
| Continuity | ● | |
| Trigger | ● | |
| Save/Read | ● | |
| Math | MAX/MIN,Rel,dB, dBm,Limit,Statistic | |
| General Characteristics | ||
| Safety | IEC61010-1: 2001, CAT Ⅰ 1000V/CAT Ⅱ 600V, Class of pollution: 2 | |
| Interface | USB Host, USB Device,RS-232,LAN, GBIP (optional) | |
| Power | 115 V/230 V (1±10%), 50 Hz/60 Hz, 15 VA | |
| Dimension & Weight | 256х106х322 mm, 3.5 kg | |
Standard Accessories | ||

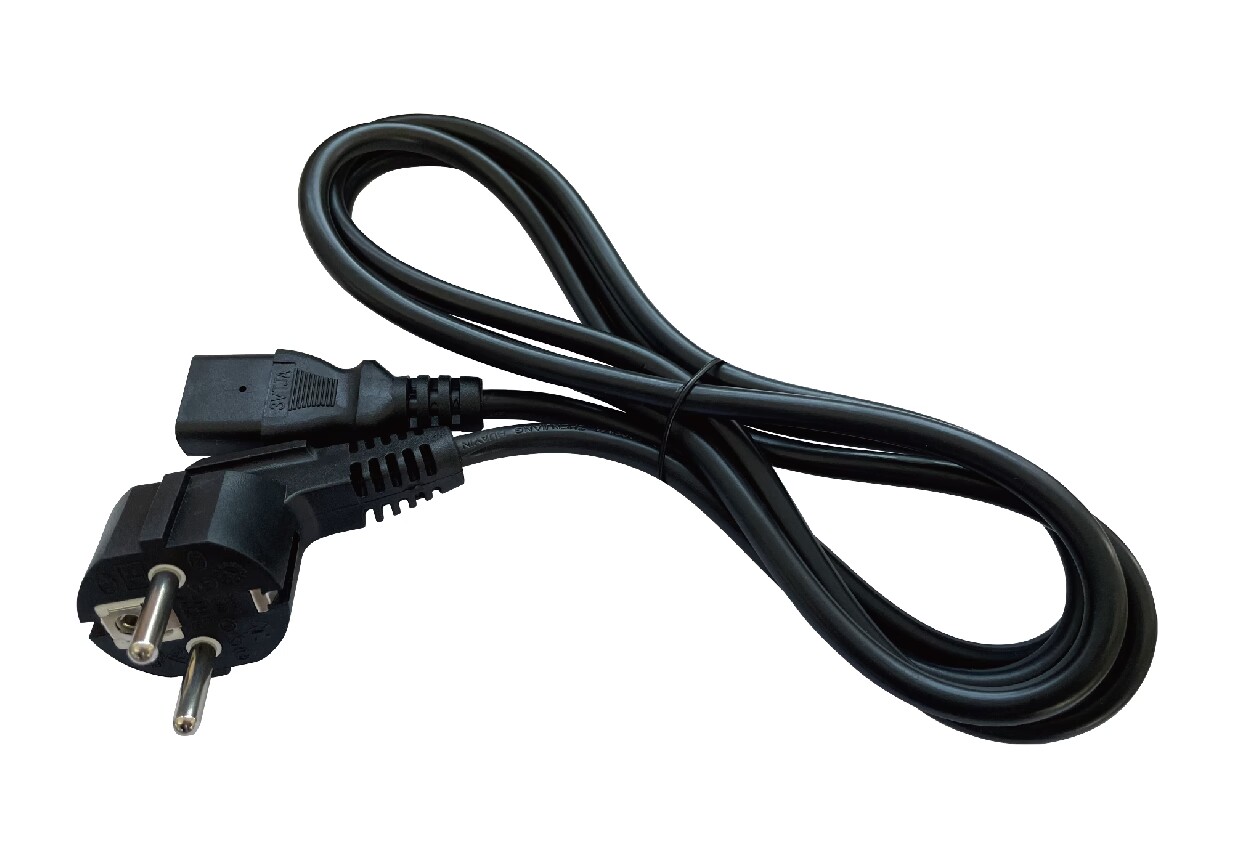

Power Cord |
| 1 |

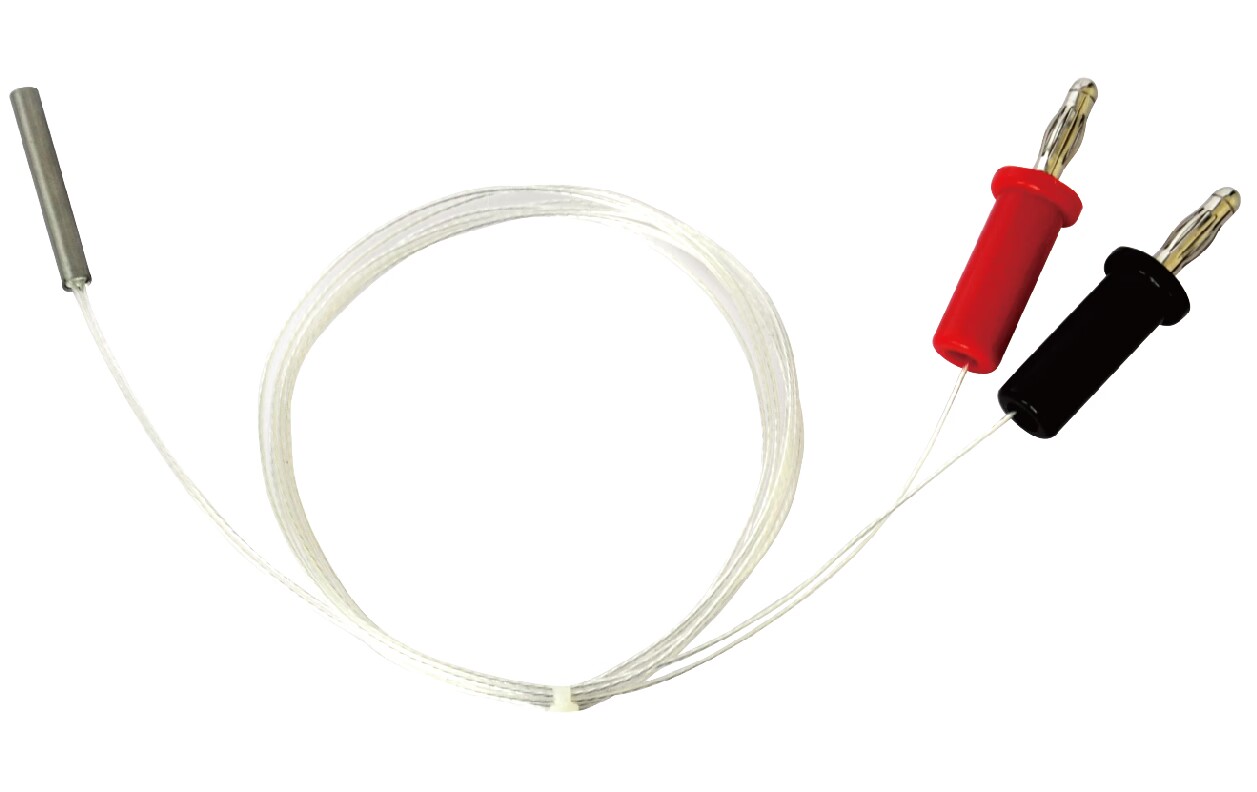

| Temperature probe |  | 1 |

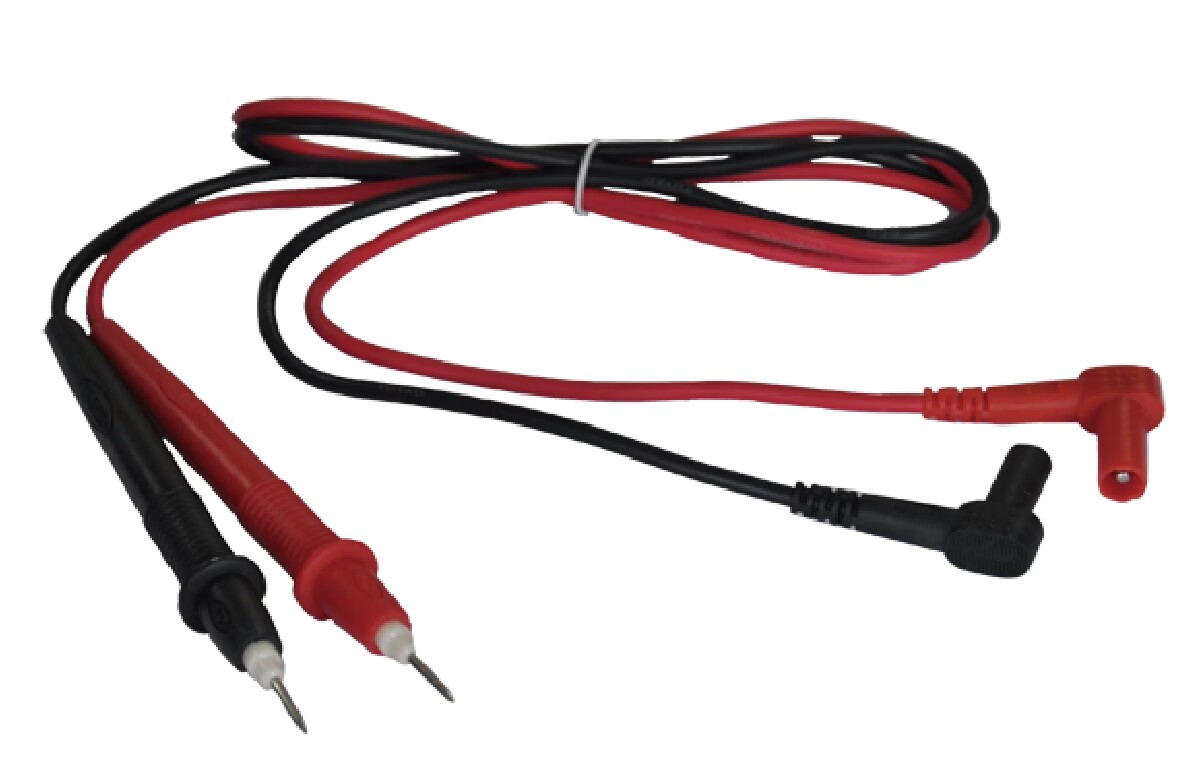

| Test Lead kit |  | 1 |
CD(Software+ User's Guide) |
| 1 |
