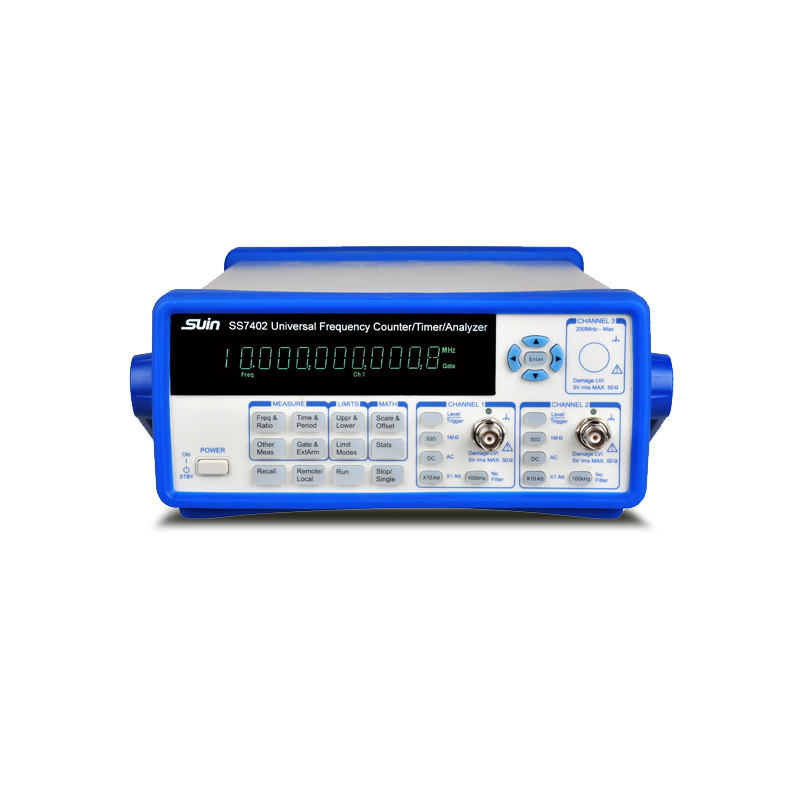

Universal Frequency Counter
Features
* Minimum measuring resolution 11 digits/s
* Time resolution 25ps (typical)
* Maximum frequency’s measurement can reach to 40GHz
(options)
* Measures Frequency, Period, Duty Cycle, Frequency
Ratio, Totalize,
* Phase Difference, Pulse Width, Time Interval and DCV.
* Utility statistics functions of multi-average,
maximum,minimum,PPM,
* Standard deviation and Allan Variance for frequency
measurement
* Stores 15 group status
* High-stability crystal oscillator is optional

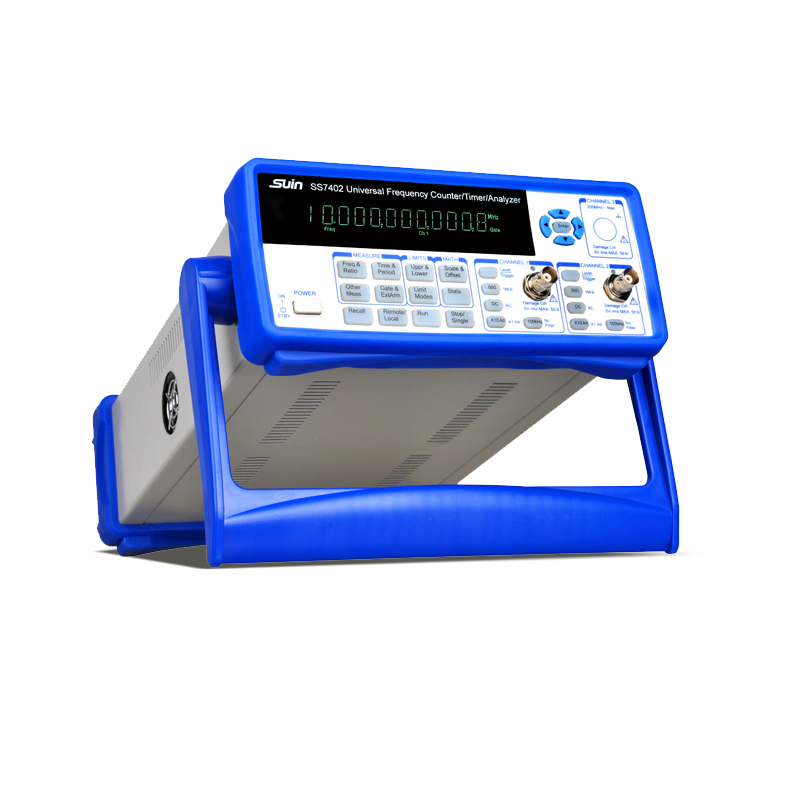

Product Model
SS7200A/SS7300/SS7400/SS7402
Universal frequency counter is an essential tool for accurately measuring the frequency of various signals, making it ideal for a wide range of applications. Frequency counters, including specialized models like the RF frequency counter, are designed to measure the frequency of both low and high-frequency signals. In the electronic frequency counter market, there are many options available, with frequency counters ranging from basic models to advanced universal counters with enhanced capabilities. The demand for frequency counter market products has grown as industries rely more on precise measurements for testing and troubleshooting. Whether you're working with a simple freq counter or a more complex universal frequency counter, these tools are vital for maintaining the integrity of electronic systems and ensuring accurate frequency count.
Specifications
| SS7200A | SS7300 | SS7400 | SS7402 | |
| Measuring Functions | ||||
| Frequency Range | CH 1: 0.001Hz ~ 200MHz | |||
| CH 2: 0.001Hz ~ 200MHz | ||||
| CH 3: options 3GHz/6.5GHz/12.4GHz/16GHz/20GHz/26.5GHz/40GHz | ||||
| Display Resolution | 8 digits/s | 10 digits/s | 11 digits/s | 11 digits/s |
| Period | 5ns ~ 1000s | |||
| Time Interval Range | 10ns ~ 10000s | 1ns ~ 10000s | ||
| Time Resolution | 2.5ns | 500 ps | 150ps | 25 ps |
| Pulse Width | 30ns ~ 5000s | 1ns ~ 10000s | ||
| Duty Cycle | 1% ~ 99% | |||
| Totalize | 0 ~ 1×1013 | |||
| Phase Difference | 1° ~ 359° | |||
| Input | ||||
| Dynamic Range | 50mVrms ~ 1.0Vrms (Sine), 150mVPP ~ 4.5VPP(Pulse) | |||
| Input Impedance | 1MΩ//35pF or 50Ω | |||
| Input Attenuation | ×1 or ×10 | |||
| Trigger Level | -5.000V ~ +5.000V | |||
| Other Functions | ||||
| Frequency Ratio | √ | |||
| Up/Low Limit | "Limit" light on shows the result out of range, off shows within range | |||
| Statistics Calculation | Multi-average, Max.,Min., PPM, SD, Allan Variance | |||
| Standard Time Base | ||||
| Accuracy | 5×10-8 | |||
| Daily Aging | 1×10-8/day | |||
| Optional Time Base | ||||
| Accuracy | 5×10-8 | |||
| Daily Aging | 5×10-10/day | |||

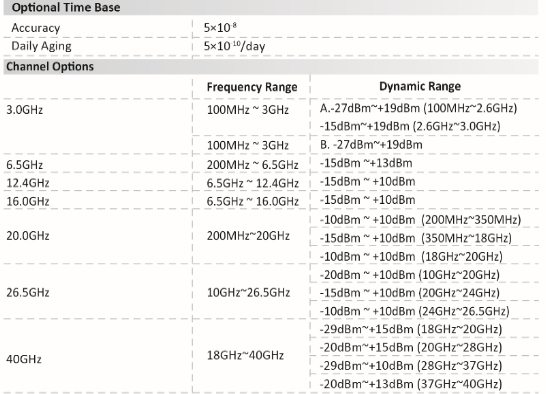

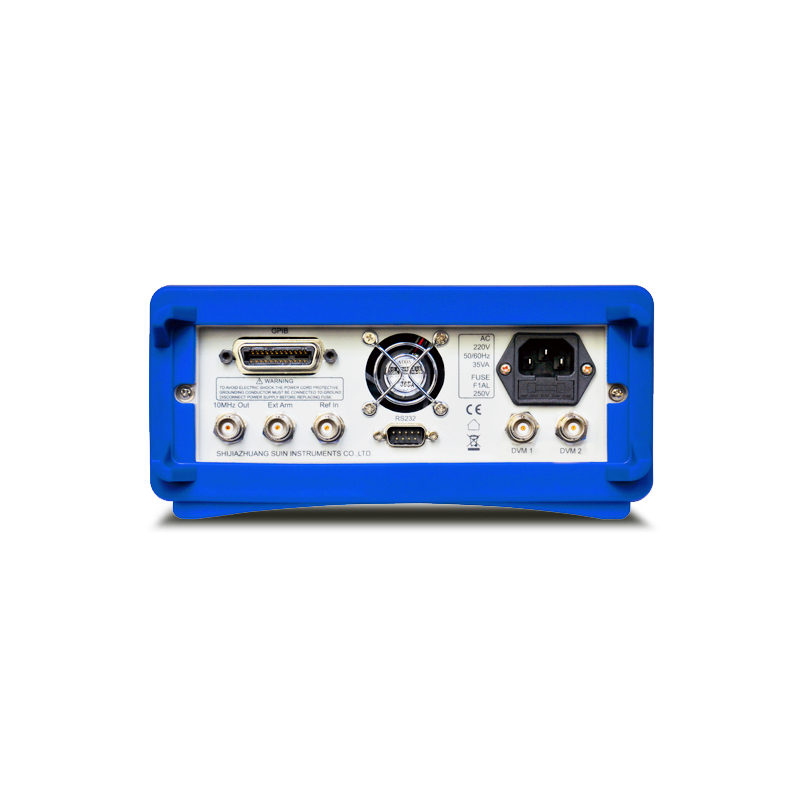

| Channel Options | ||||
| Frequency Range | Dynamic Range | |||
| 3.0GHz | 100MHz-3GHz | A. -27dDm~+19dBm (100MHz~2.6GHz) -15dBm~+19dBm (2.6GHz~3.0GHz) | ||
| 100MHz-3GHz | B. -27dBm~+19dBm | |||
| 6.5GHz | 200MHz-6.5GHz | -15dBm~+13dBm | ||
| 12.4GHz | 6.5GHz~12.4GHz | -15dBm~+10dBm | ||
| 16.0GHz | 6.5GHz~16GHz | -15dBm~+10dBm | ||
| 20.0GHz | 200MHz-20GHz | -10dBm~+10dBm (200MHz~350MHz) | ||
| -15dBm~+10dBm (350MHz~18GHz) | ||||
| -10dBm~+10dBm (18GHz~20GHz) | ||||
| 26.5GHz | 10GHz-26.5GHz | -20dBm~+10dBm (10GHz~20GHz) | ||
| -15dBm~+10dBm (20GHz~24GHz) | ||||
| -10dBm~+10dBm (24GHz~26.5GHz) | ||||
| 40GHz | 18GHz~40GHz | -29dBm~+15dBm (18GHz~20GHz) | ||
| -20dBm~+15dBm (20GHz~28GHz) | ||||
| -29dBm~+10dBm (28GHz~37GHz) | ||||
| -20dBm~+13dBm (37GHz~40GHz) | ||||
| Damage Level | +20dBm | |||
| General Characteristics | ||||
| Interface | Standard USB | USB, RS-232 | USB, RS-232 | RS-232, GPIB |
| Optional RS-232, GPIB | GPIB | GPIB | ○ | |
| Power | AC220V(10%) or AC110V(10%), 50Hz(5%) OR 60Hz(5%) | |||
| AC220V (1 ±10%), 50Hz(1±5%)<70VA (for SS7402 and SS7400) | ||||
| Dimension & Weight | 375×105×235mm | |||
| 3.7kg | 3.7kg | 4.2kg | 5.2kg | |
