Digital Pattern Generators/Pulse Pattern Generators
Overview
SU5000 Series-Digital Pulse Pattern Generators differently from other signal generators output analog waveforms, SU5000 Series pattern generators output digital pattern waveforms, using crystal oscillator as the time base, also have data storage and recall function. It has internal, external, manual trigger modes, and Ext. Trigger input 1Hz~10MHz for square, pattern rate 2mHz~50MHz for SU5303. Pulse output mode can be continuous, single, gate control. With these characteristics, it has applications in education, navigation, communication, and electric power load testing system.
Product Model
SU5101/5102

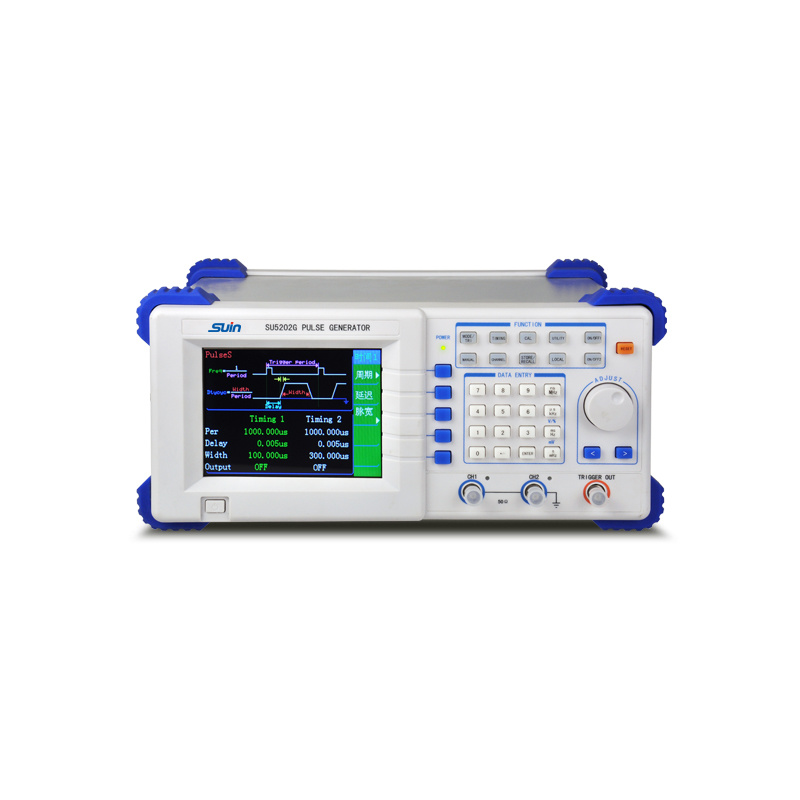

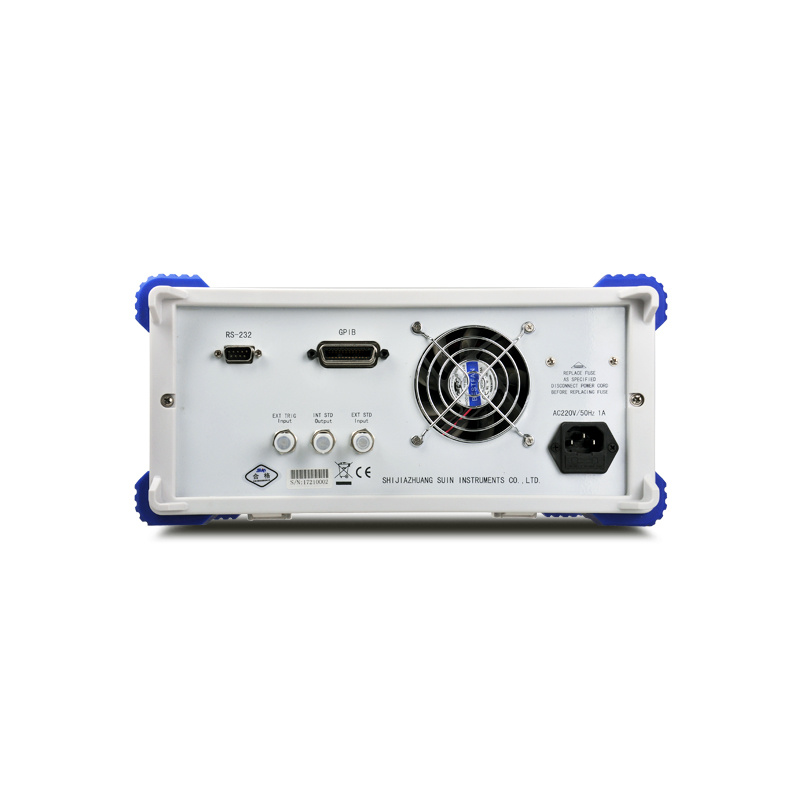

SU5202G

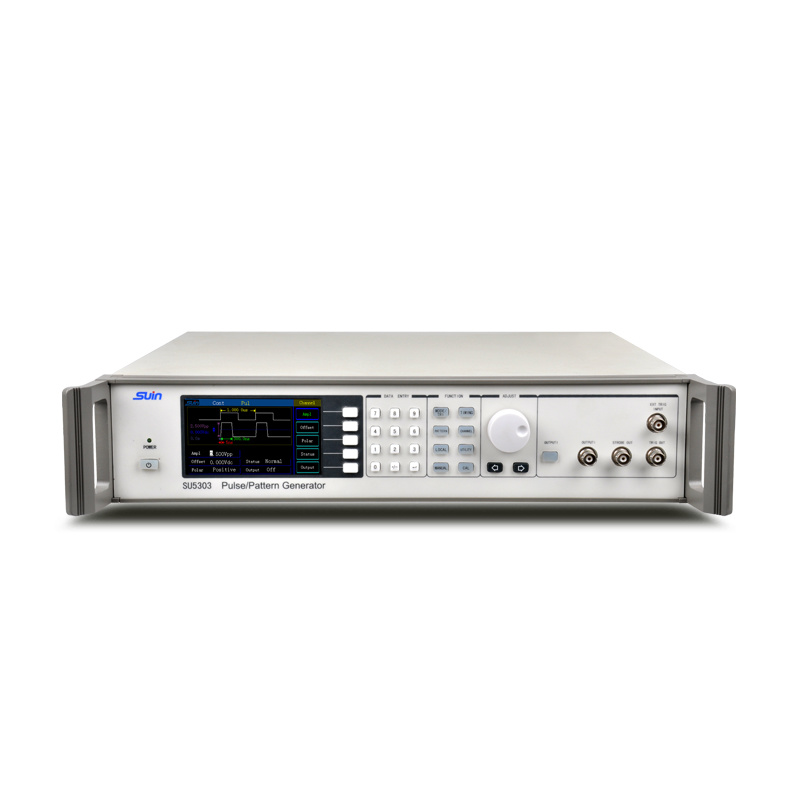

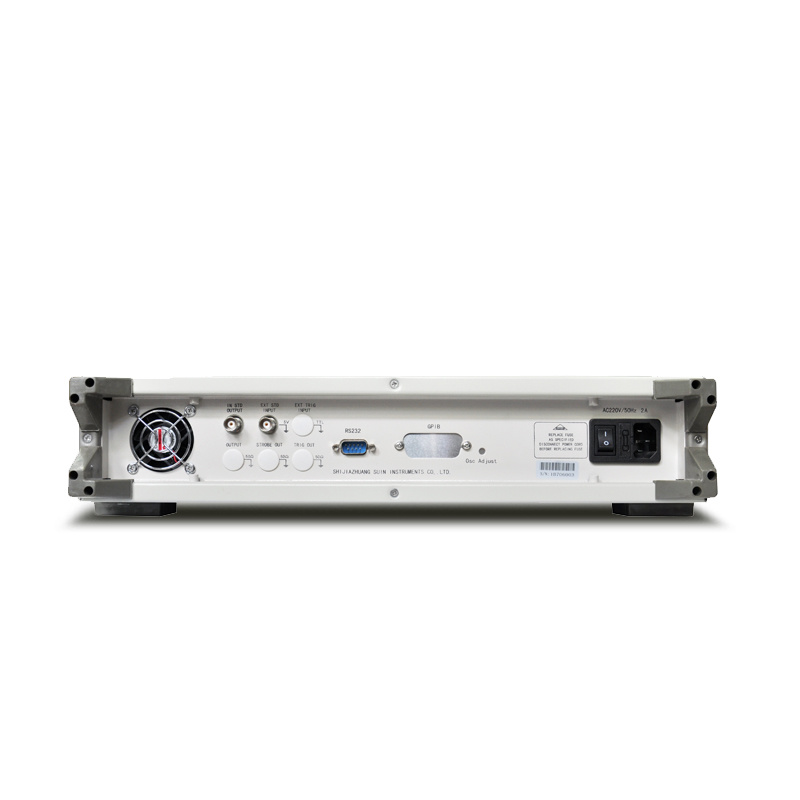

SU5302/SU5303
SU5000 Series Digital Pattern Generator Features
* Direct Digital Synthesis Technology
* Crystal Oscillation Reference
* High Accurate Time and Frequency
* Count burst or single burst both can be selected
* Multiple output channels and EXT
* Trigger/Frequency Standard Input channels
* Data Storage and Recall
* Optional GPIB and USB interface
| SU5101/5102 | SU5202G | SU5302 | SU5303 | |
| Channel | 1/2 | 2 | 2 | 1 |
| Waveform | ||||
| Pulse | Single/Dobule, Logic Positive /Negative, Positive/Negative Polary | Single/Dobule, Logic Positive /Negative | Logic Positive /Negative | |
| Edge Time | ≤10ns | ≤10ns | 8ns ~ 1ms | 8ns ~ 1ms |
| Overshoot | ≤ 10% | ≤ 10% | ≤ 10% | ≤ 5% |
| Time | ||||
| Pulse Period | 20ns ~ 10000s (frequency range: 0.1mHz ~ 50MHz) | |||
| Time Interval | 5ns ~ 10000s | 8ns ~ 9999.5s | ||
| Resolution | 5ns (Low range), 10μs (High range) | 0.1ns(typical) | ||
| Interval Error | ± (T×5×10-5 + 5ns)(Low range), ±(T×5×10-5 + 10μs) (High range) | ±(T×5×10-5+5ns) | ||
Pattern | N/A | Length:4095bits | Length:16384bits | |
| Format:NRZ | Format:NRZ, RZ | |||
| Rate:100mHz ~ 50MHz | Rate:2mHz ~ 50MHz | |||
| Resolution: 0.1Hz | ||||
| Amplitude Offset | ||||
| Amplitude Range | 50mV ~ 10V (High Z) | 50mV ~ 5V (50Ω) | 50mV ~ 5V (50Ω) | 50mV ~ 5V (50Ω) |
| Offset Range | 50mV ~ 10V (High Z) | 50mV ~ 5V (50Ω) | 50mV ~ 5V (50Ω) | -5V~ 5V (50Ω) |
| Output Impedance | 50Ω | |||
| TTL | ||||
| TTL/COMS Level | Low Level≤ 0.3V, High Level≥3.0V (high impedance load) | |||
| Output Impedance | 50Ω | |||
| Burst | ||||
| Burst Count | 2 ~ 65000 cycles | |||
| Burst Mode | Continuous, Signle | |||
| EXT. STD Input | ||||
| Frequency | 10M mutiple | |||
| Amplitude | 0.5-5Vpp, AC coupling | |||
| Trigger | ||||
| Trigger Mode | Internal, External, Manual | |||
| Ext. Trigger Input | Frequency: 1Hz ~ 10MHz (Square), Amplitude: 1Vpp ~ 20 Vpp | |||
| Input Impedance | ≥100kΩ | |||
| General Characteristics | ||||
| Power | AC110-240V, 50/60Hz,<80VA | |||
| Display | VFD | 5.7' TFT LCD | 5.7' TFT LCD | 4.3' TFT LCD |
| Optional Interface | USB, GPIB | RS232(Standard),GPIB | RS-232 (Standard) | RS232(Standard),GPIB |
| Dimension & Weight | 254×103×384mm, Approx.3 kg | 330×155×300mm,Approx.4.2kg | 450×100×475mm, Approx.6.0 kg | |
Digital pattern generator is a versatile tool used in electronics for creating precise signal patterns. Similarly, a pulse pattern generator and a digital pulse generator are essential for generating specific timing sequences in testing and development. A pattern generator can also refer to tools like an HTML pattern generator or an HTML input pattern generator, which help developers define input validation rules for forms. For signal-related applications, a pulse pattern or pulse signal generator is often employed to produce accurate waveform outputs.
Power Cord:1pcs
Testing cable:1pcs
CD(Software+ User's Guide):1pcs
Options
Power Amplifier
