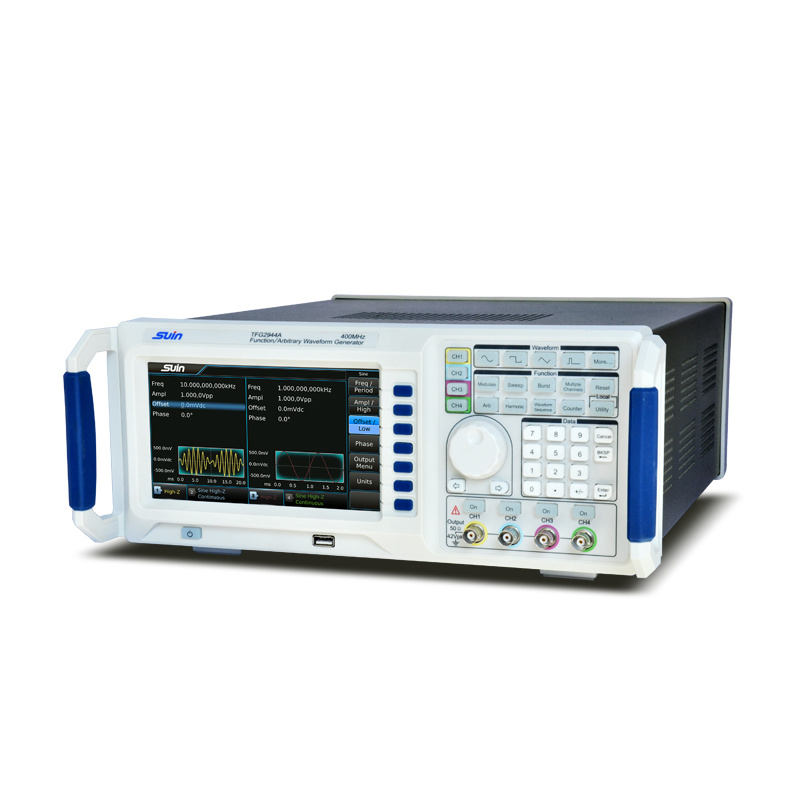

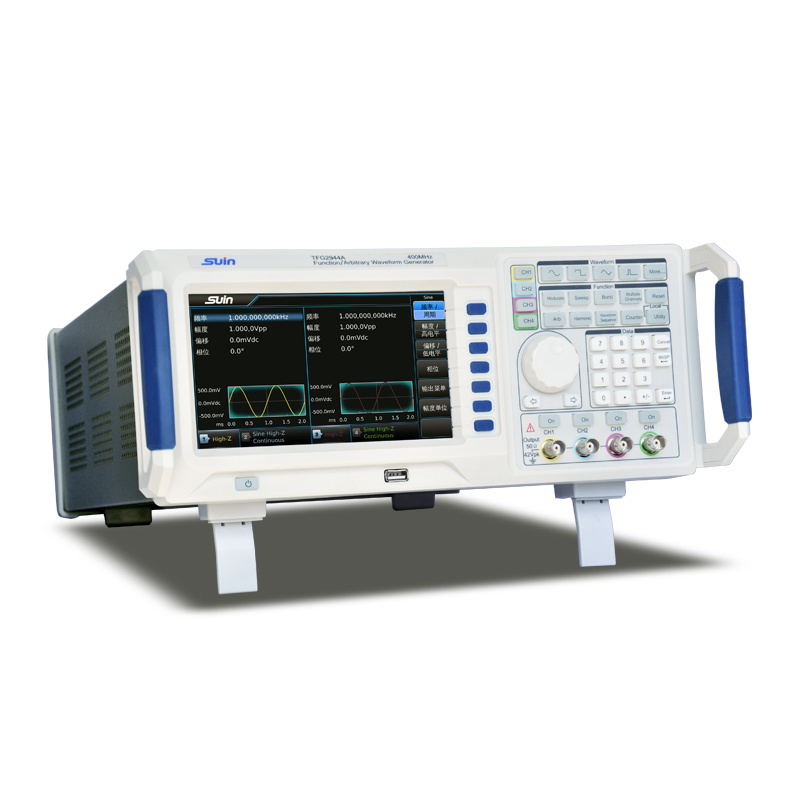

The TFG2900A series is a high-performance 4 channel function generator designed for engineers and researchers who require precise and flexible signal outputs. As a 4 channel arbitrary waveform generator, it supports independent or synchronized signal generation across all channels, making it ideal for complex testing environments. This advanced 4 channel signal generator delivers a wide range of standard and custom signals, supporting sine, square, pulse, ramp, and noise, along with powerful modulation capabilities. Whether you need a reliable waveform function generator for educational use or a cutting-edge arbitrary function generator for R&D applications, the TFG2900A provides exceptional versatility and accuracy. It combines the features of a modern electronic function generator with the precision of an arbitrary waveform function generator, supporting up to 32?Mpts of waveform length and a sample rate of 1.2?GSa/s.

Applications

Unlocking limitless possibilities, our waveform generator is a versatile companion for engineers, researchers, and enthusiasts alike. Whether you're conducting groundbreaking experiments or developing advanced circuits, our waveform generator is here to empower your creativity.

It is widely used in: Education, R&D, Production, Test

In advanced testing and research, a 4 channel function generator is a vital tool, especially when precision is required across multiple outputs. For more specialized applications, such as in ultrasonic research, a 4 channel arbitrary waveform generator is often employed to create complex signals. Researchers working on arbitrary waveform research systems find these generators essential for their experiments. In particular, the use of arbitrary waveforms for ultrasonic research allows for detailed analysis and experimentation. The ability to manipulate the waveform function with a waveform function generator is crucial in various fields, including signal processing and communication. Many laboratories also utilize a custom waveform generator for tailored signal generation. For generating multiple signals simultaneously, a 4 channel signal generator provides the necessary flexibility, while an electrical signal generator supports a wide range of testing and development needs. Research in arbitrary waveform for ultrasonics continues to benefit from these sophisticated tools, enhancing our understanding and capabilities in the field.

Design Features

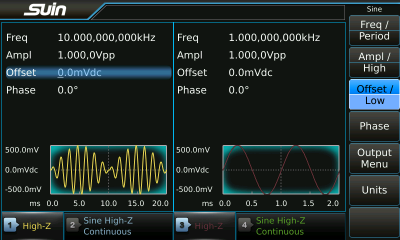

1. 7 inch touchscreen display for a easier operation.

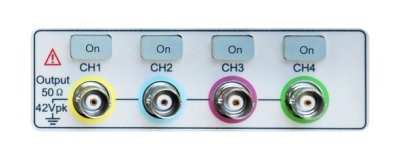

2. True four channels with same characteristics.

3. 1.2GSa/s sample rate and 14 bits vertical resolution.

4. Support multiple signal outputs.

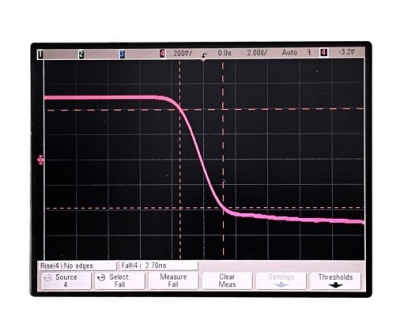

5. Rise/Fall time of pulse less than or equal to 2.5ns.

6. Advanced waveform sequence function.

Our signal generator function goes beyond traditional generators, offering a comprehensive range of features. Explore a multitude of waveforms including sine, square, triangle, and more. Harness the power of frequency modulation, amplitude modulation, and phase modulation for enhanced signal manipulation. You have the freedom to experiment, innovate, and push boundaries.

Research professionals and academics will appreciate our Arbitrary Waveform Research System. Equipped with cutting-edge functionalities and a user-friendly interface, it provides an ideal platform for in-depth waveform exploration. Dive into the depths of complex signals, study intricate circuit behavior, and unravel the mysteries of signal processing.

Questions & Answer From TFG2944A Arbitrary Waveform Generator - 400MHz - 4CH

Q: What is the bandwidth of the Suin TFG2944A? How many channels does it have?

A: The Suin TFG2944A is a 400 MHz, 4 channel arbitrary waveform generator.

Q: Does the TFG2944A have the frequency counter?

A: Yes, frequency counter could be configured as option to meet user need and can measure frequencies up to 3GHz. This allows you to measure items such as duty cycle, frequency, and positive/negative pulse width.

Q: What’s the maximum arbitrary waveform length for TFG2944A?

A: It’s 32Mpts.

Q: 1ppm is the best accuracy of TFG2944A as manual shown, is possible to improve it if user have a higher accuracy demand?

A: Yes, optional OCXO with 0.01ppm accuracy are prepared to meet user’s higher measurement
