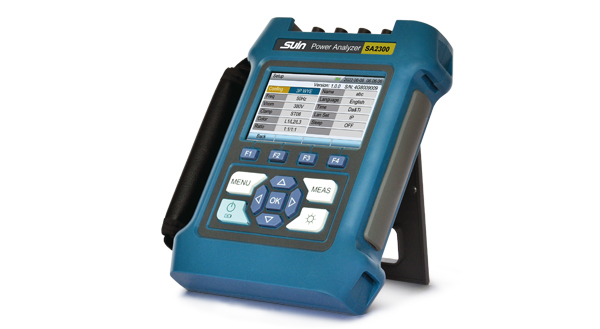

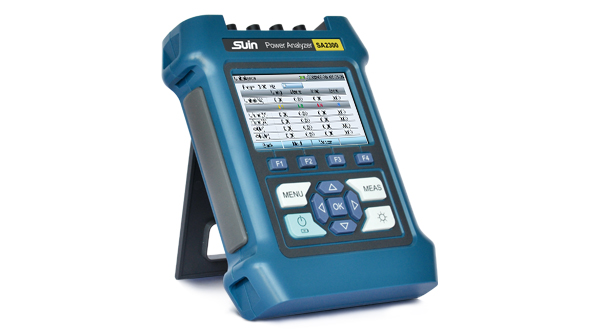

SA2300 Power and Energy Analyzer can calculate a large number of electrical parameters and display them quickly. The device offers extensive and powerful measurements functions to check power distribution system, so it can detect quality of power grid and electrical characteristics rapidly and conveniently.
With the advancement of power equipment, the power grid system is evolving into a more complex network, leading to increasingly challenging fault issues. In response to this, our company has recently introduced the SA2300, a multifunctional, lightweight, and cost-effective power analyzer and meter. The three phase portable power quality analyzer is designed to assist you in swiftly and accurately diagnosing faults within the power system, enabling more thorough and systematic monitoring of power quality.
The SA2300 is extensively utilized for monitoring power quality and tracing faults across various applications.
The three-phase power analyzer is a specialized portable device designed for monitoring and analyzing the operational quality of power grids. It is capable of providing harmonic and power measurements during power operations, along with the ability to record and store long-term data of power grid operations.
The 3-Phase Power and Harmonic Analyzer finds application in various sectors such as electric power, petrochemical, metallurgy, railway, industrial and mining enterprises, scientific research institutions, metrology departments, etc. It is particularly well-suited for conducting comprehensive analysis and diagnosis of various electrical parameters including voltage, current, power, electric energy, harmonics, and phase.
Economical, compact and simple to use
Provide all necessary measurement function
4.3 inch color LCD touch screen
32GB Micro SD card is used for storage

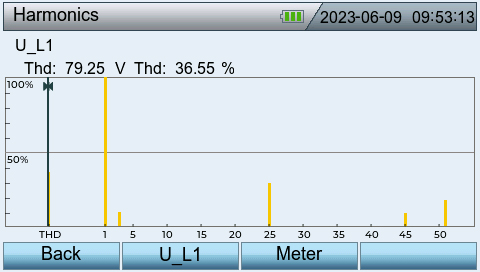

1. Track harmonics up to 51th

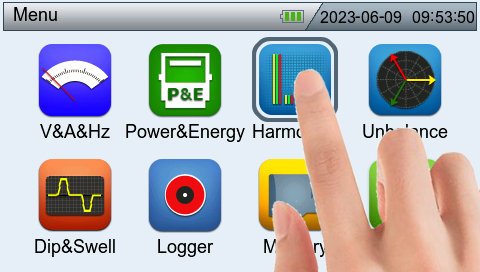

2. 4.3 inch touch screen display for a easier operation

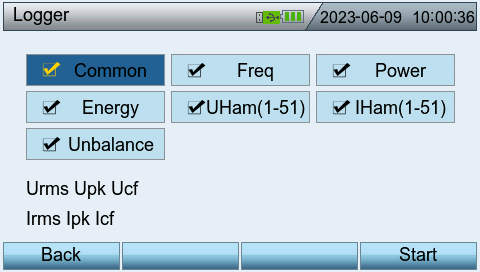

3. Powerful logger function

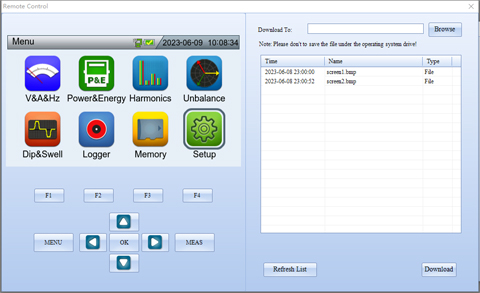

4. Equipped with PC software for data analysis
Q: What is the maximum recording time of the logger?
A: Usually one year,this depends on time interval
Q: Does SA2300 have THD measurement function?what about the measurement range?
A: Yes,you can find THD measurement in harmonic mode,range from 0% to 100%.
Q: How long does the battery of SA2300 can operate?what about the battery charge time?
A: The operating time can up to 6 hours when the screen brightness is in level 3. The battery charge time is about 6 hours.
| INPUT | ||

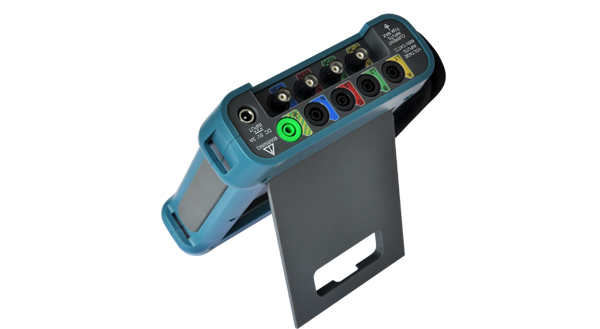

| 4 current input channels+4 voltage input channels | ||
| 3 PHASE MULTI-POWER SYSTEM | ||
1P/2W(1P+NEUTRAL 1P IT NO NEUTRAL) 1P/3W(1P Split Phase) 3P/3W(3P DELTA) 3P/4W (3P WYE) | ||
| DATA REFRESH RATE | ||
| 1s | ||
| MEASUREMENT | ||
Voltage/ACV (Urms, Upk) | Range | 5~600Vrms |
Accuracy (L1/A,L2/B,L3/C) | ±0.2%±2counts | |
| PT ratio | 1 to 10000, variable | |
Current/ACA (Irms, Ipk) | Range | 1500A, with SY-1500A current probe |
| Accuracy | ±0.2%±5counts | |
| Optional current probe | ST08-5A, CTC0080-50A,CTC0130-100A, SY-1500A, PY-3000A, SY-6000A | |
| CT ratio | 1 to 10000, variable | |
| Frequency | Range | 42.5-57.5Hz (50Hz nominal) 51-69Hz (60Hz nominal) |
| Harmonic | Number | 1-51th |
| Accuracy | ±0.1%±n x 0.1% | |
| THD | ±2.5% | |
| Power | Active power (P), Reactive power(Q), Apparent power(S), Power Factor (PF), cosФ (DPF) | |
| Energy | Active energy (EP), Reactive entergy(EQ), Apparent energy(ES) | |
| Transient Event | Dips/swell | |
| Logger | Interval | 1s to 60 minutes |
| Memory | 32G Micro SD card | |
| GENERAL | ||
| Display | 4.3 inch color touch screen/480x272 | |
| Language | Multi languge including Chinese, English, etc. | |

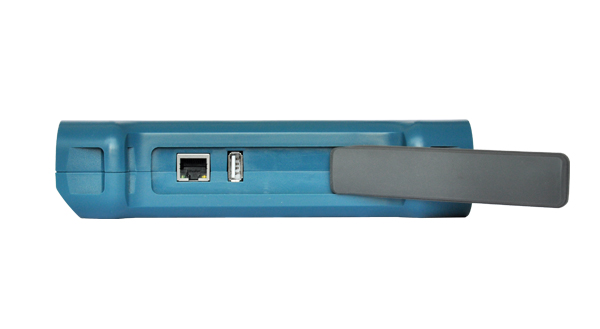

| Communication Port | USB Host, LAN | |
| Dimension/Weight | 158x200x47mm/1kg | |
| Power | 18650 lithium ion 3.6V x 2, 5100mAh / 6h or DC 5V/3A adapter | |
| Safety standard | IEC61010-1, CATIII 600V | |
Voltage Test Leads and Alligator Clips:5pcs
DC 5V/3A Power Adapter and Power Cord:1pcs
Soft Carry Bag:1pcs
CD(Manual and PC Software):1pcs
Current Clamps:ST08-5A,CTC0080-50A,CTC0130-100A
Flexible Current Probes:SY-1500A,PY-3000A,SY-6000A
