Inexpensive RF Spectrum Analyzer
Features
* Frequency Range: 9kHz to 3.0GHz
* DANL: -135dBm Typ.
* Phase Noise: -80dBc/Hz (10kHz offset)
* Amplitude Resolution: <1.5dB
* RBW: 1Hz to 1MHz, step 1-3-10
* Tracking Generator optional
* Full measuring functions and auto setting
* 7' TFT LCD
* USB Host, USB Device, LAN, RS232, VGA
Product Model

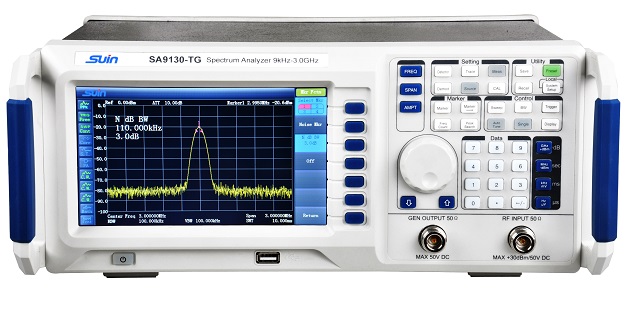

SA9115/SA9130
SA9115-TG/SA9130-TG
Suin Improve budget utilization and make RF testing more efficient
Unlock the hidden potential of your RF signals with our cutting-edge spectrum analyzer. Whether you are optimizing a new design, balancing test throughput and accuracy on the production floor, or providing maintenance services and verifying field equipment, you need to use the right tool for the job.
Don't let budget constraints hold you back. We understand the importance of affordability, which is why we offer a spectrum analyzer price that won't break the bank. Say goodbye to exorbitant costs and hello to exceptional value without compromising on quality.
Discover unparalleled accuracy and comprehensive insights into your signal's frequency spectrum. Our spectrum analyzer offers a wide frequency range, ensuring no signal goes unnoticed. From identifying noise and interference to measuring harmonic distortion, this versatile tool does it all.
Our basic RF spectrum analyzer offers great value and versatility to perform accurate RF testing in the 9 kHz to 3 GHz frequency range.
| Reliable RF testing in the 3 GHz frequency range gives you more efficient analysis for less budget. |
| Improve RF test efficiency with optimized measurement speed and value-added features. |
| Enhanced ease-of-use that reduces learning time and increases test efficiency. |
| Multiple features (including spectrum analysis, signal monitoring, and transmission/reflection measurements) to meet more RF test needs. |
Key Advantages
High Sensitivity: -135dBm (with preamp enabled), ideal for weak signal detection (e.g., IoT devices, receiver testing).
Broad Frequency Coverage: SA9130 supports up to 3GHz, covering 5G NR bands (n77/n78/n79), Wi-Fi 6E (6GHz-ready with external mixers), and legacy wireless protocols.
Precision RBW: 1Hz–1MHz RBW (Resolution Bandwidth) with 1-3-10 stepping enables narrowband signal analysis (e.g., crystal oscillator phase noise, LTE channel power).
Advanced Measurement Capabilities: Tracking Generator (TG models), Enables reflection measurements (VSWR, cable loss) and filter frequency response testing. Built-in Channel Power, Occupied Bandwidth (OBW), and Adjacent Channel Power Ratio (ACPR) for pre-compliance EMI/EMC testing.
Use the SA9115 and SA9130 spectrum analyzers to quickly see if your measurements meet the frequency and power criteria expected in your test plan.
SA9115 | SA9130 | |||
Frequency | ||||
Range | 9kHz ~ 1.5GHz | 9kHz ~ 3.0GHz | ||
Resolution | 1Hz | |||
Frequency Span | ||||
Frequency Span Range | 0Hz, 100Hz ~ 1.5GHz | 0Hz, 100Hz ~ 3.0GHz | ||
Uncertainty | ±span/(sweep points-1) | |||
SSB Phase Noise(fc=1.0GHz) | -80dBc/Hz @10kHz offset | |||
Bandwidths | ||||
Resolution Bandwidth (-3dB) | 10Hz ~ 1MHz, step 1-3-10 | |||
RBW Uncertainty | 10%, nominal (RBW>1kHz) | |||
20%, nimial(RBW≥10Hz, sweep time≥5s) | ||||
Video Bandwidth (-3dB) | 1Hz to 1MHz, step 1-3-10 | |||
Amplitude | ||||
Range | DANL to +30dBm | |||
Maximum Input Level | DC Voltage: 50V | |||
CW RF Power: +30dBm (1.0W) | ||||
Max.Damage Level: +40dBm (10W) | ||||
Displayed Average Noise Level (DANL) | ||||
DANL (Preamplifier Off) | typ. -125 dBm | |||
DANL (Preamplifier On) | typ. -135 dBm | |||
| Reference Level Range | -100dBm to +30dBm, step 1dB | |||
Sweep | ||||
Sweep Time Range | 100Hz≤Span≤3GHz | 10 ms to 3000 s | ||
Span=0 Hz | 20 μ;s to 3000 s | |||
Sweep Time Uncertainty | 100Hz≤Span≤3GHz | 5%, nominal | ||
Span=0 Hz | 0.5%, nominal | |||
Sweep Mode | Continuous, single | |||
Trigger | ||||
Trigger Source | Free, Video, External | |||
External Trigger Level | 5 V TTL level | |||
Advanced measurement | ||||
Channel Power, Adjacent Channel Power, N-dB bandwidth, Occupied Bandwidth | ||||
EMI | 200Hz, 9kHz, 120kHz | |||
| Input/Output | ||||
| RF Input Impedance | 50Ω | |||
| Standard frequency | Frequency: 10MHz | |||
Amplitude: 0dBm~10dBm(input) -3dBm to +3dBm (output) | ||||
| TRACKING GENERATOR (-TG Model) | ||||
| TG Frequency range | 9kHz to 1.5GHz | 9kHz to 3GHz | ||
| TG Output level range | -20dBm to 0dBm | |||
| TG Output level resolution | 1dB | |||
| Interface | ||||

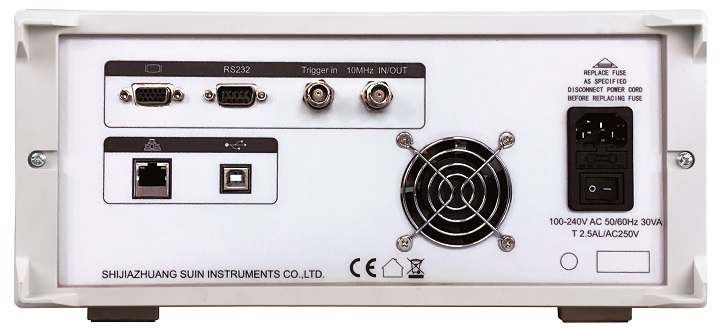

| Type | USB Host & Device, LAN, VGA, RS-232 | |||
GENERAL CHARACTERISTIC | ||||
Power Supply | Input Voltage | AC100V to 240V | ||
Frequency | 50/60Hz(1±10%) | |||
Power Consumption | 35W | |||
Dimension & Weight | 363×154×327mm, approx. 6.0kg | |||
Equipped with advanced RF spectrum analyzer software, our system allows you to harness the power of data visualization and analysis. Seamlessly explore signal characteristics, identify anomalies, and make informed decisions based on accurate measurements. Our intuitive software interface ensures effortless operation, making complex analyses accessible to professionals of all levels.
Experience ultimate convenience with our USB spectrum analyzer. Compact, portable, and compatible with various devices, it brings flexibility to your signal analysis needs. Now you can take your spectrum analysis on the go, whether in the lab, on-site, or during fieldwork.
We understand that finding a low-cost spectrum analyzer is a priority. That's why we've designed our instrument with affordability in mind, without compromising on performance. Enjoy the benefits of a feature-rich RF analyzer at a fraction of the price you'd expect. No more sacrificing quality for cost-effectiveness – we've got you covered.
Revolutionize your signal analysis with our cheap spectrum analyzer. Unlock the secrets of your RF signals, fine-tune your systems, and optimize performance – all without draining your budget. Experience professional-grade capabilities without compromise.
Suin Discover the difference with our spectrum analyzer and take your signal analysis to new heights. Embrace precision, affordability, and ease-of-use all in one. Don't settle for less when you can have the best – unlock the full potential of your RF signals today!
When looking for a spectrum analyzer, it's important to consider both functionality and cost. Whether you're searching for a spectrum analyzer image to visualize the product, or a spectrum analyzer cheap option, there are various models available for different needs. A cheap spectrum analyzer may be suitable for basic tasks, while a more advanced low frequency spectrum analyzer or rf spectrum analyzer is ideal for specialized applications. Before purchasing, it's worth checking the spectrum analyzer price to ensure it fits your budget. Tools like a spectrum meter, rf analyzer, or spectra analyzer can also help you measure and analyze signals effectively.
| Expand your RF test capabilities with the right tools |
| Increase productivity by pairing the right accessories. |
| Accelerate your product development by employing the right SUIN design and test automation software. |
| Thus allowing your existing RF test instruments to perform more of their potential functions. |
Standard Accessories
Power Cord:1pcs
N-BNC Adapter:1pcs
CD(Software+ User's Guide):1pcs
Options
Tracking Generator
N-SMA Adapter, N-SMA Cable, BNC-BNC Cable,
USB cable, RS-232 cable
Attena 1(900MHz/1.8GHz), Attena2(2.4GHz)
Near Field Probe Set SY5030
