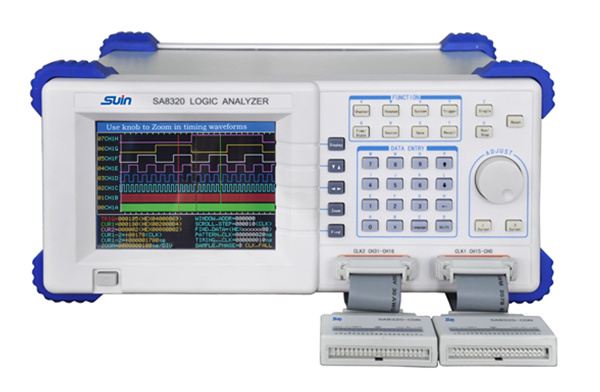

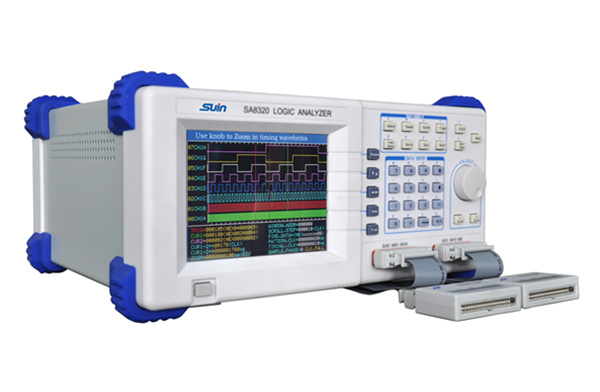

High Speed Logic Analyzer
Feature
* Large scale integrated circuit, FPGA, SOPC, high speed
and large memory
* Perfect function of start, trigger and delay to track and
take the concerned data effectively
* 32 data sampling channels, 2 external clock channels
* A fast and effective debugging tool for hardware
and software of MCU
* 5.7” color LCD display, the resolution 320×240 points

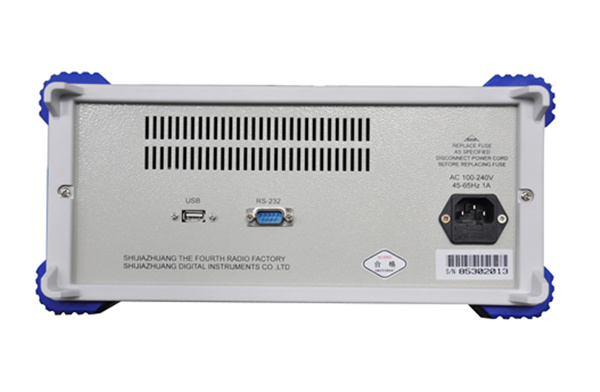

* USB Device and RS-232
High-Speed Logic Analyzer is a sophisticated instrument used to capture and analyze digital signals in electronic circuits, especially those operating at high speeds. It is crucial for debugging, verifying, and optimizing digital systems, providing insights into the timing and logic state of digital signals.
Key Features:
High Sampling Rate: Modern high-speed logic analyzers offer sampling rates in the gigahertz (GHz) range, enabling them to capture fast-changing digital signals with precision.
Multi-Channel Support: They can monitor multiple channels simultaneously, which is essential for analyzing complex digital systems with many interdependent signals.
Deep Memory: Deep memory buffers allow for extended data capture, enabling detailed analysis over longer periods.
Triggering Capabilities: Advanced triggering options help in isolating specific events or conditions within the digital signal stream, making it easier to debug complex issues.
Protocol Analysis: Many high-speed logic analyzers support protocol analysis for common standards like I2C, SPI, USB, and Ethernet, facilitating the debugging of communication interfaces.
User Interface: Intuitive software interfaces with graphical displays and comprehensive analysis tools enhance the user experience and productivity.
Applications:
Embedded Systems Development: Essential for debugging and optimizing microcontroller-based systems, ensuring correct logic states and timing.
Digital Circuit Design: Used in the design and verification of digital circuits, including FPGAs and ASICs, to ensure proper functionality.
Communication Systems: Crucial for analyzing and debugging digital communication protocols and interfaces.
Computer Hardware: Used in the development and testing of computer hardware components, such as CPUs, memory modules, and peripheral interfaces.
Automotive Electronics: Important for verifying the functionality and timing of automotive electronic control units (ECUs) and other digital systems.
Specifications
| Input | ||
| Input Channel | 32 data sampling channels, 2 external clock channels | |
| Threshold Voltage | 6 independent and adjustable threshold voltages | |
| Adjustable Range: -6V ~ +6V | ||
| Resolution: 0.1V | ||
| Input Impedance | R ^ >100 kΩ, C ^ <8 pf | |
| Sample/Memory | ||
| Sampling Rate | Timing Rate | 1Hz ~ 100MHz (Period 10ns ~ 1s), Resolution: 10ns |
| State Rate | 1Hz ~ 35MHz | |
| Sampling Phase | rise edge, fall edge | |
| Memory Depth | 256k bytes / channel | |
| Trigger | ||
| Trigger Condition | 32 bits trigger level, 32 bits trigger comparand | |
| Event Count | 1 ~ 999 | |
| Memory Delay | 1~ 260000 sampling cycles | |
| Pattern Generator | ||
| Pattern Type | CH00 to CH15 are counters with adding 1, CH16 to CH29 are shift pulse CH30 to CH31 monitor external clk1 and clk2 | |
| Pattern Rate | Frequency: 1Hz ~ 50MHz(period 20ns ~ 1s) resolution:10ns | |
| General Characteristics | ||
| Power | AC220V(1±10%), 50Hz(1±5%), ≤10VA | |
| Display | 5.7' TFT LCD | |
| Dimension & Weight | 329×283×155mm, Approx. 4.3kg | |
SUIN is a high-tech company specializing in the R&D, production, testing, sales, and service of test and measurement instruments, electrical products, and application software. With a robust foundation and advanced SMT production line, SUIN achieves an annual capacity of 30,000 sets of digital electronic instruments. Key products include signal generators, digital multimeters (DMM), spectrum analyzers, frequency counters, power quality analyzers, and programmable DC power supplies, all of which are well-received in both domestic and international markets. The company holds several certifications, including ISO9001 and various CE EMC and LVD certificates for its product lines, ensuring high quality and compliance with industry standards.
Standard Accessories
Power Cord:1pcs
BNC Testing Cable:1pcs
CD(Software+ User's Guide):1pcs
