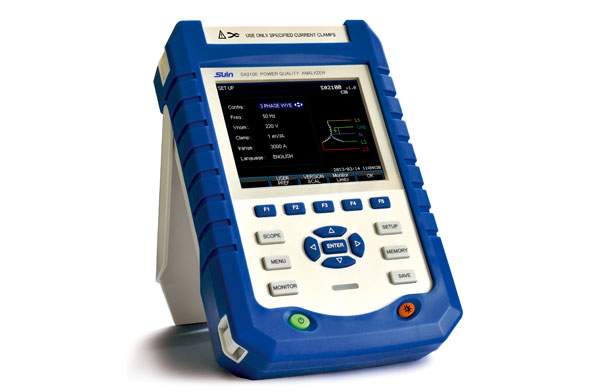

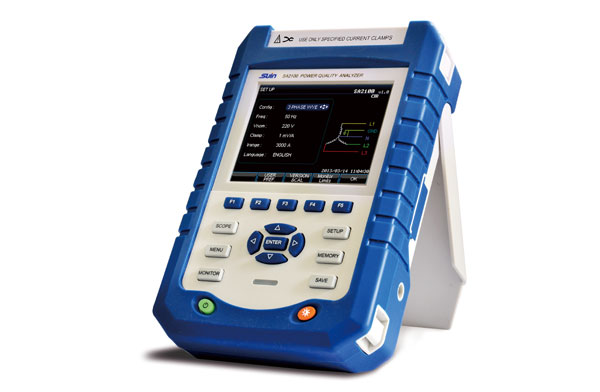

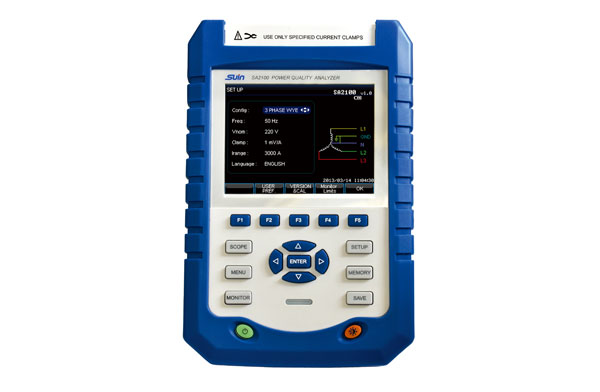

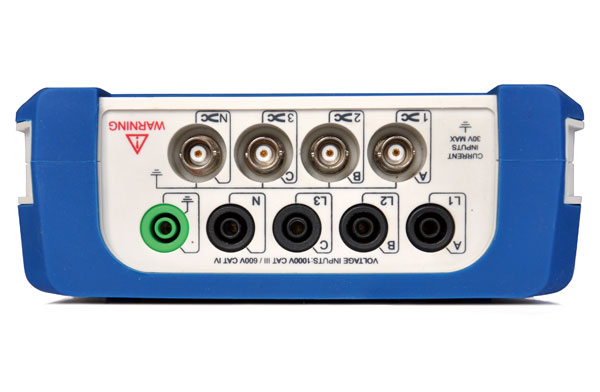

SA2100 Class S Power Quality Analyzer
SA2100 is a handheld multi-functional device which is designed to measure and analyze single or three-phase power system. This portable class S device can provide safe, convenient and accurate measurements for troubleshooting power networks.
SA2100 Portable Power Quality Meters
Portable Power Quality Meters enable electricians and facility maintenance professionals to troubleshoot and benchmark power quality problems over time. They help you identify energy waste in your facility and detect and prevent power problems before they occur.
Portable Power Quality Meter identifies power quality problems that often manifest themselves as dips, spikes, harmonic distortion, imbalances, flicker and transients.
Power quality determines the suitability of electrical energy to drive motors, machines and other end-user equipment.
Poor power quality can affect the ability of these devices to operate properly, which can lead to malfunctions, premature failures or possibly cause them to not work at all.
Most power quality analyzers monitor total harmonic distortion, phase angle, power factor, balance, etc. to get a complete picture of the system.
Why is a Power Quality Analyzer So Important?
How to Select Power Quality Analyzer?
A power quality analyzer is essential for monitoring and diagnosing electrical systems. Whether you need a power quality meter or portable power analyzers, these tools provide accurate data to ensure optimal performance. A power analyzer meter is ideal for measuring various parameters, while power quality meters offer detailed insights into voltage, current, and harmonic issues. For on-the-go assessments, a portable power quality analyzer or portable power meter provides convenience and flexibility. Investing in a portable power analyzer ensures you're equipped for both troubleshooting and regular monitoring tasks.
Whether you're a power engineer, facility manager, or industrial professional, our analyzer provides a comprehensive set of tools to diagnose, troubleshoot, and optimize your power systems.
Widely used in: Electrical power, medical, transportation, telecommunication, other industrial areas
Basic voltage measurement accuracy of±0.5%
1-50th harmonic display
Support dynamic measurement such as Inrush, Flicker and Transients.
10 kinds of language are available to select
Powerful logger function

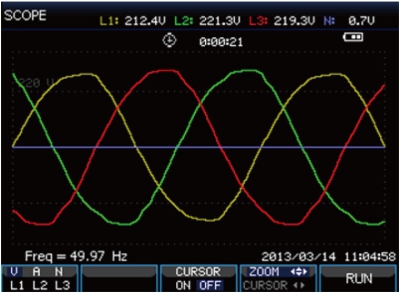

1. Scope - View the voltage/current waveform and readings. Cursor Zoom function.

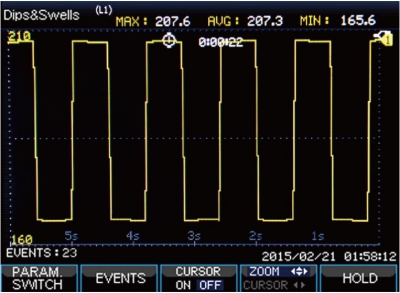

2. Dips & Swells - Capture the abnormal Event, such as Swells, Dips, Interruptions and Rapid Voltage change

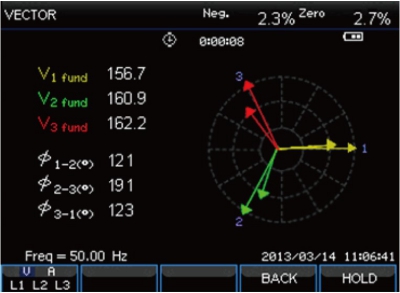

3. Unbalance - Check the unbalance in 3 phases based on IEC61000-4-30 standards

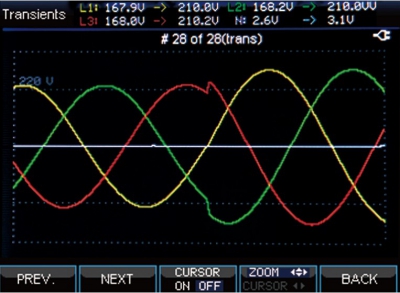

4. Transients - Capture waveforms at high-resolution during a variety of disturbances, maximum 100 events, sample rate 20Ks/s
Equipped with advanced features, our Power Quality Analyzer is the epitome of accuracy and reliability. Uncover hidden anomalies, harmonics, voltage fluctuations, and transients that may impact the stability and efficiency of your power infrastructure. Pinpoint issues swiftly and take proactive measures to maintain optimal power quality.
Our Power Analyzer Meter offers an intuitive interface and user-friendly design, allowing you to effortlessly navigate through the complexities of power monitoring. Gain real-time insights, visualize waveforms, and analyze comprehensive reports to make informed decisions and drive performance improvements.
Power Quality Monitoring is made effortless with our advanced system. Stay informed about voltage fluctuations, harmonics, power factor, and more. Detect potential issues before they escalate, ensuring uninterrupted operations and mitigating the risk of equipment damage or downtime.
Power Quality Meters are essential tools for any industry. Our Power Quality Analyzer provides precise and accurate measurements, enabling you to meet regulatory standards, identify power inefficiencies, and optimize energy consumption. Take control of your power systems with Suin.
Unleash the potential of your power infrastructure, optimize energy consumption, and drive performance excellence with Suin. Trust in our expertise to ensure a reliable and efficient power supply. Power your success with Suin Digital Power Quality Analyzer!
As with any troubleshooting task, you need the right tools to get the job done. Power quality analyzers identify power quality problems, which often manifest themselves as dips, spikes, harmonic distortion, imbalances, flicker and transients. Power quality determines the suitability of electrical energy to drive motors, machines and other end-user equipment. Poor power quality affects the ability of these devices to operate properly, which can lead to malfunctions, premature failures or possibly cause them to not work at all. Most power quality analyzers monitor total harmonic distortion, phase angle, power factor, balance and more to get a complete picture of the system. Capturing the data needed for troubleshooting is the first step in solving these power quality problems, and the SUIN SA2100 Power Quality Analyzer and Meter will help you track and identify voltage anomalies and harmonic distortion problems - even the most difficult to find.
When there's a problem with your AC power system, you need to find it in time; SUIN's three-phase power meter will quickly provide the answers you need to make things work. This three-phase meter can be used for troubleshooting to help you find answers immediately; or as a benchmarking tool to discover trends in your power quality over time. Simply connect and view the health of your power system digitally or graphically, then record the data and share it with colleagues or consultants via screenshots, charts or reports. the SUIN power quality meter will provide you with all the answers you need to solve power quality problems quickly and efficiently.
Q: What is the IEC61000-4-30 standard for power quality analyzer?
A: IEC61000-4-30 published by International Electrotechnical Commission (IEC) is an international standard that specify how power quality instruments should make measurements. Also it defines the exact measurement algorithms methods for power quality parameters such as power quality voltage, flicker, unbalance, harmonic, etc.
Currently the latest version of the standard is IEC61000-4-30, Edition 3 which was published in 2015.
There are two classes defined in this standard-Class A and Class S, Suin SA2100 power quality analyzer is classified to Class S instrument, of which accuracy and performance requirements are not as strict as Class A.
Q: Does standard SA2100 include current clamps? Is the current clamp can support DC measurement?

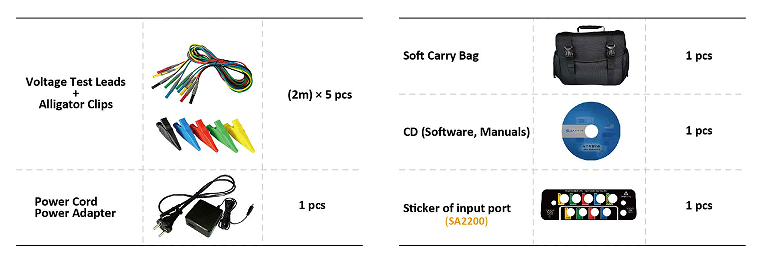

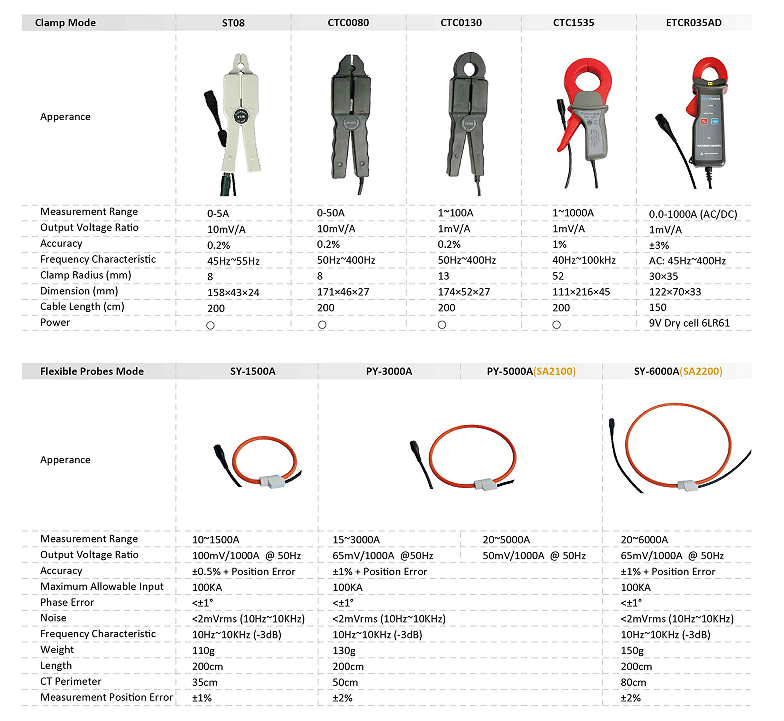

A: Usually the standard quotation of SA2100 contains 4pcs rogowski coils PY-3000A. To meet different measurement needs, additional 5 types current transformer clamps-ST08-5A, CTC0080-50A, CTC0130-100A, CTC1535-1000A, ETCR035AD-1000A and 3 types rogowski coils-SY-1500A, PY-5000A and SY-6000A are supplied as option for user selection. While ETCR035AD-1000A can support AC/DC measurement, other types are only available for AC measurement.
| Measurement Range | Resolution | Accuracy | ||
| Voltage/Current/Frequency | ||||
| Vrms(AC+DC) | 1~ 1000Vrms | 0.1Vrms | ±0.5% of nominal voltage | |
| Vpk | 1 ~ 1400Vpk | 0.1Vpk | ±0.5% of nominal voltage | |
| V(Crest Factor) | 1.0 ~>2.8 | 0.01 | ±5% | |
| Arms (AC) | 10mV/A | 0 ~ 100A | 0.1A | ±0.5%±0.2A |
| 1mV/A | 1~1000A | 0.1A | ±0.5%±0.2A | |
| 50mV(65mV)/1000A | 15~5000A | 1A | ±1%±2A | |
| A(Crest Factor) | 1~10 | 0.01 | ±5% | |
| Frequency | 42.5 ~ 57.5Hz (50Hz nominal) | 0.01Hz | ±0.01Hz | |
51 ~ 69Hz (60Hz nominal) | 0.01Hz | ±0.01Hz | ||
385~414Hz (400Hz nominal) | 0.01Hz | ±0.1Hz | ||
| Dips & Swells | ||||
| Vrms1/2 | 0 ~ 200% of nominal voltage | 0.1Vrms | ±1% | |
| Arms1/2 | 1 ~ 3000A | 1A | ±1%±2A | |
| Duration | hour-minute- second- microsecond | 0.5 cycle | 1 cycle | |
| Harmonic(IEC61000-4-7) | ||||
| Harmonic Number | 1 ~ 50 | |||
| Harmonic Voltage %f | 0.0 ~ 100.0% | 0.10% | ±0.1%±nx0.1% | |
| Harmonic Current %f | 0.0 ~ 100.0% | 0.10% | ±0.1%±nx0.1% | |
| THD | 0.0 ~ 100.0% | 0.10% | ±2.5% | |
| Phase | -360° ~ 0° | 1° | ±nx1.5° | |
| Power and Energy | ||||
| Active Power/Apparent Power/Reactive Power | 1.0 ~ 20.00MW | 0.1kW | ±1.5±10 digits | |
| KWh | 0.00kWh ~ 200GWh | 10Wh | ±1.5±10 digits | |
| Power Factor | 0 ~ 1 | 0.01 | ±0.03 | |
| Flicker (IEC61000-4-15) | ||||
| Pst(1min),Pst,Plt,PF5 | 0.00 ~ 20.00 | 0.01 | ±5% | |
| Unbalance | ||||
| Voltage | 0.0 ~ 5.0% | 0.10% | ±0.5% | |
| Current | 0.0 ~ 20.0% | 0.10% | ±1% | |
| Voltage Phase | -360° ~ 0° | 1° | ±2digits | |
| Current Phase | -360° ~ 0° | 1° | ±5digits | |
| Voltage Transient | ||||
| Vpk | ±6000Vpk | 1V | ±15% | |
| Vrms | 10 ~ 1000Vrms | 1V | ±2.5% | |
| Min. Test Time | 50us | |||
| Inrush Current | ||||
| Arms | 0~3000Arms | 0.1 | ±1%±5digits | |
| Inrush Duration | 6s ~ 32min selectable | 10ms | ±20ms | |
| Logger | ||||
| Recording | user-defined parameters for 4 phases at the same time | |||
| Memory | Data stored in Micro SD card, 8GB | |||
| Duration Time | 2 hrs to 1 year, depends on the recording items and time interval | |||
| Interval | 1s to 1 hrs | |||
| Monitor | ||||
| Support EN50160 in default or user-defined standard | ||||
| Channel(Voltage/Current) | 4/4 | ||||
| Voltage Range | 1-1000Vrms, 6000V transient voltage | ||||
| Current Range | depends on supplied current clamp | ||||
| Micro SD card(bulid-in) | 8GB | ||||
| Battery | NI-MH, 3800Ah/>7h | ||||
| interface | USB Host, LAN | ||||
| Screen | 5.6' TFT LCD with resolution320*240(SA2100) | ||||
| Language | 10-Chinese, English, French, German, Korean, Polish, Portuguese , Spanish, Turkish,Russian | ||||
| Dimension/Weight | 262*173*66mm/1.6kg | ||||
| Wire Combinatios | 1?+NEUTRAL,1? SPLIT PHASE,1? IT NO NEUTRAL,3? WYE, 3? DELTA, 3? IT, 3? HIGH LEG, 3? OPEN LEG, 2-ELEMENT, 2 1/2-ELEMENT | ||||
| Electrical Safety | IEC61010-1 ,Safety Degree: 600V CAT IV 1000V CAT III |
