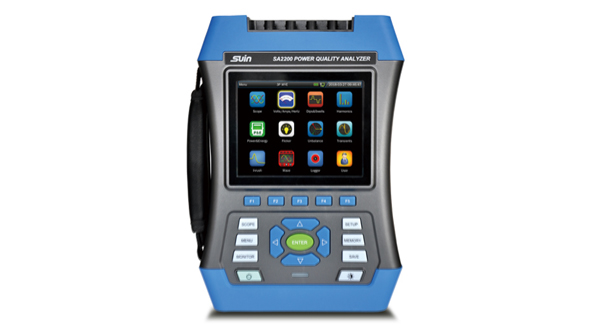

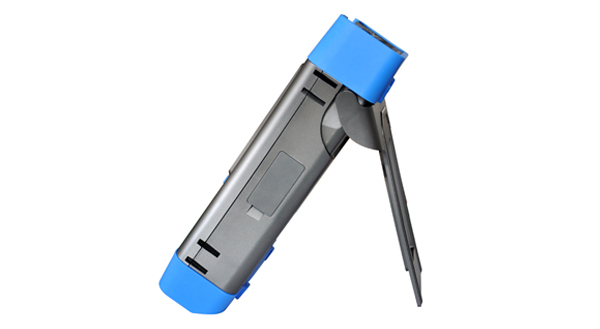

SA2200 Portable Power Analyzer
Overview
The critical importance of electrical power in today's society necessitates daily maintenance and management to ensure that problem's don't occur. When they do, for example due to an equipment failure or abrupt surge in demand, engineers face the need to analyze the cause quickly.
The Suin SA2100 and SA2200 help troubleshoot power quality problems in three- and single-phase power distribution systems. Especially the SA2200 can conduct tests according to the international IEC 61000-4-30 Class A standard.
A Portable Power Analyzer is a handheld instrument used to measure, analyze, and display electrical power parameters of a system. It can be used to monitor electrical power usage, detect power quality issues, and measure power factor, voltage, current, and frequency. Portable power analyzers are commonly used in a variety of applications such as industrial power systems, renewable energy systems, building automation, and electrical maintenance. They offer advantages such as compact size, battery operation, and easy-to-use interfaces, making them useful for field testing and troubleshooting.
Our Portable Power Quality Analyzer is designed to empower professionals like you with unmatched precision and convenience. Whether you're an electrical engineer, energy auditor, or maintenance technician, our analyzer is a compact yet powerful companion for on-the-go p ower quality analysis.
It is widely used in: Power supply maintenance, management, troubleshooting and analysis
Class A compliance under international standards
Basic voltage measurement accuracy of±0.1%
Special waveform record function
200kS/s sample rate
Support multi language
32GB micro SD card
GPS time synchronization
Introduction And Measuring of Active Power And Reactive Power
Why is a Power Quality Analyzer So Important?
How to Select Power Quality Analyzer?

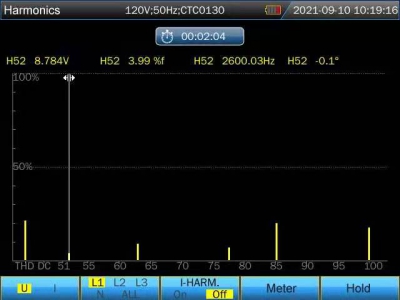

1. Track harmonics up to 100th

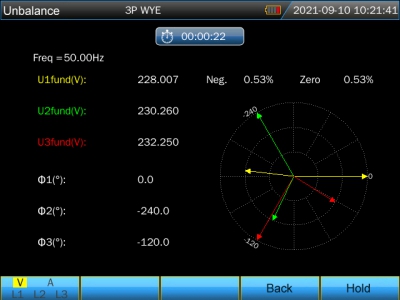

2. Phase Diagram

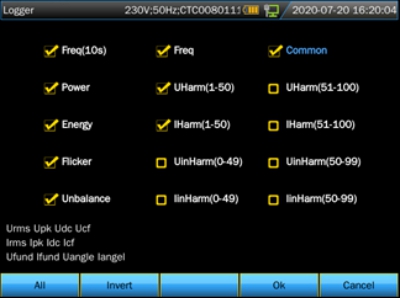

3. Powerful logger function

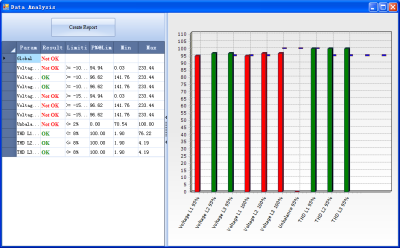

4. Data analyze in PC software
Equipped with advanced features and state-of-the-art technology, our Power Analyzer delivers comprehensive insights into the health and efficiency of your electrical network. Uncover hidden issues, identify voltage fluctuations, harmonics, and power factor irregularities that may impact system reliability and energy consumption.
Our Portable Power Analyzer is engineered for versatility. Its compact size and lightweight design make it easy to carry and use in various environments. From industrial sites to commercial buildings, our analyzer adapts to your needs, ensuring accurate and reliable measurements wherever you go.
Experience the convenience of digital power analysis with Suin. Our intuitive interface and user-friendly controls allow you to navigate through measurements effortlessly. Visualize waveforms, analyze comprehensive reports, and make informed decisions to optimize energy consumption and enhance power system performance.
Trust in the reliability of Suin Power Analyzers. Our devices are meticulously crafted to meet the highest industry standards, ensuring accurate measurements and reliable performance in every analysis. With our Portable Power Quality Meter, you can confidently diagnose power quality issues and take proactive measures to maintain system integrity.
Q: What are Class A power quality analyzers?
A: Class A Power Quality Analysers that must meet Class A performance requirements of IEC61000-4-30 international standard, when instruments are connected to the same signals will produce the same results. Class A instruments must meet the highest performance and accuracy requirements in this standard.
Class A defines the measurement time accuracy (better than +/- 0.3 sec/day) for parameters such as voltage, current and harmonics. With defined methods and measurement uncertainties for Power Supply Voltage, Flicker, Voltage Unbalance, Voltage and Current Harmonic.
Suin SA2200 power quality analyzer complies with the IEC61000-4-30 Ed. 3 Class A standard. So far, the certified by IEC62856-2 is being prepared and will made public once get this certification.
Q: What’s function of THD? Which measurement version that SA2200 adopts and how to display it?
A: Total Harmonic Distortion (THD) is used to measure waveform distortion. Method THDF - total harmonic distortion referred to fundamental component was used on SA2200 and result will be expressed as a percentage.
Suin SA2200 is a highly reliable class A power quality analyzer designed for precise monitoring and analysis of electrical systems. As a versatile power analyzer, it provides accurate measurements for both single phase power analyzer applications and more complex setups. Power quality analyzers like the SA2200 are essential tools for identifying and troubleshooting power issues in electrical networks. This digital power analyzer offers advanced features, making it an excellent choice for professionals in need of a high-performance electrical power analyser. Whether you're looking for general power analyzers or a specialized power quality analyser, the Suin SA2200 delivers exceptional performance and reliability.
| Voltage/Current/Frequency | Measurement Range | Resolution | Accuracy | |
| Vrms(AC+DC) | 1 ~ 120Vrms | 0.001Vrms | ±0.1% of nominal voltage | |
| 120Vrms~400Vrms | 0.01Vrms | |||
| 400Vrms~1000Vrms | 0.1Vrms | |||
| Vpk | 1 ~ 1400Vpk | 0.01Vpk | ±0.5% of nominal voltage | |
| V(Crest Factor) | 1.0 ~ >2.8 | 0.01 | ±5% | |
| Arms（AC） | 10mV/A | 0~150A | 0.01A | ±0.1%±0.1A |
| 1mV/A | 1~2000A | 0.01A | ±0.1%±0.1A | |
| 65mV/1000A | 10~6000A | 0.01A | ±0.1%±0.2A | |
| A(Crest Factor) | 1 ~ 10 | 0.01 | ±5% | |
| Frequency | 42.5~57.5 (50Hz nominal) | 0.01Hz | ±0.01Hz | |
51~69 (60Hz nominal) | 0.01Hz | ±0.01Hz | ||
320~480 (400Hz nominal) | 0.01Hz | ±0.01Hz | ||
| Dips & Swells | ||||
| Vrms1/2 | 0 ~ 200% of nominal voltage | 0.01Vrms | ±0.2% | |
| Arms1/2 | depends on current clamps | 0.01A | ±1% | |
| Harmonic (IEC61000-4-7) | ||||
| Harmonic Number | 1 ~ 100(50/60Hz) (IEC61000-4-7) 1~12(400Hz) | |||
| Harmonic Voltage %f | 0.0 ~ 100.0% | 0.01% | ±0.1%±nx0.1% | |
| Harmonic Current %f | 0.0 ~ 100.0% | 0.01% | ±0.1%±nx0.1% | |
| THD | 0.0 ~ 100.0% | 0.01% | ±2.5% | |
| Phase | -180° ~180° | 0.1° | ± nx0.1° | |
| Power and Energy | ||||
| P, S, Q1 | Max. 6000MW | 0.1kW | ±1%±10 digits | |
| PF & cosФ | 0 ~ 1 | 0.01 | ±0.01 | |
| kWh, kVAh, kvarh | depends on nominal voltage and current clamps | ±1%±10 digits | ||
| Flicker (IEC61000-4-15) | ||||
| Pst(10min)/Plt (2 hrs) | 0.00 ~ 20.00 | 0.01 | ±5% | |
| Unbalance | ||||
| Voltage | 0.0 ~ 20.0% | 0.10% | ±0.1% | |
| Current | 0.0 ~ 20.0% | 0.10% | ±1% | |
| Voltage Phase | -360° ~ 0° | 0.1° | ±0.1° | |
| Current Phase | -360° ~ 0° | 0.1° | ±0.5° | |
| Voltage Transient | ||||
| Vpk | ±6000Vpk | 0.01V | ±15% | |
| Vrms | 10 ~ 1000Vrms | 0.01V | ±2.5% | |
| Min. Test Time | 5us | |||
| Inrush Current | ||||
| Arms | depends on current clamps | 0.01A | ±1%±5digits | |
| Inrush Duration | 1 ~ 32min selectable | 10ms | ±20ms | |
| Mains Signaling | ||||
| Signaling Frequency | 60-3000Hz | 0.1Hz | ||
| Relative V% | 0%-100% | 0.10% | ±0.4% | |
| Absolute V3s (3s average) | 0.0-1000V | 0.1V | ±5% of Nominal voltage | |
| Logger | ||||
| Recording | user-defined parameters for 4 phases at the same time | |||
| Memory | Data stored in Micro SD card, 32GB | |||
| Duration Time | 2 hrs to 1 year, depends on the recording items and time interval | |||
| Interval | 1s to 60 minutes | |||
| Monitor | ||||
| Support EN50160 in default or user-defined standard | ||||
| Channel(Voltage/Current) | 4/4 | |||
| Voltage Range | 1-1000Vrms, 6000V transient voltage | |||
| Current Range | depends on supplied current clamp | |||
| PC software analysis | Yes | |||
| Micro SD card(bulid-in) | 32GB | |||
| Battery | Lithium ion, 5200mAh/>8h | |||
| Time Synchronization | GPS/Beidou(option) | |||
| interface | USB Host, LAN, WIFI | |||
| WIFI App | ●(option) | |||
| Screen | 5.6' TFT LCD with resolution640*480(SA2200) | |||
| Language | 14-Chinese, English, French, German, Italian, Japanese, Korean, Polish, Portuguese(Brazil/Portugal), Russian, Spanish (Latin/Spain), Turkish | |||
| Dimension/Weight | 270*190*66mm/2.0kg | |||
| Wire Combinatios | 1?+NEUTRAL,1? SPLIT PHASE,1? IT NO NEUTRAL,3? WYE, 3? DELTA, 3? IT, 3? HIGH LEG, 3? OPEN LEG, 2-ELEMENT, 2 1/2-ELEMENT | |||
| Electrical Safety | IEC61010-1 ,Safety Degree: 600V CAT IV 1000V CAT III | |||
Power quality analyzers are essential tools for monitoring and analyzing the electrical quality of a power system. These devices measure various parameters, such as voltage, current, frequency, and harmonic distortion, to ensure that the power supply meets the required standards. A power quality analyzer can identify issues like voltage sags, swells, transients, and harmonic disturbances, which can affect the performance and lifespan of electrical equipment. For professionals who need to conduct measurements in different locations, a portable power analyzer offers the convenience of mobility without compromising on accuracy. These analyzers are compact, easy to transport, and ideal for on-site diagnostics and troubleshooting. Whether you're dealing with a single power quality analyser or a comprehensive system of power analyzers, these instruments provide valuable insights into the health and efficiency of your electrical infrastructure.

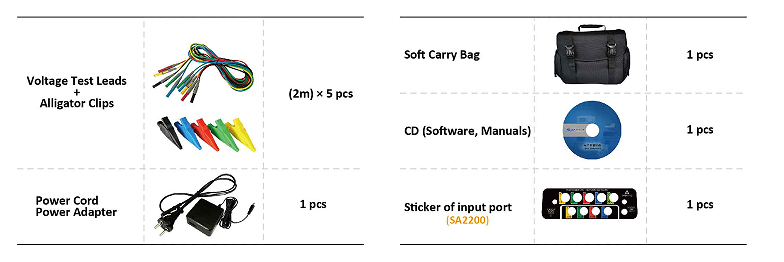

Accessories

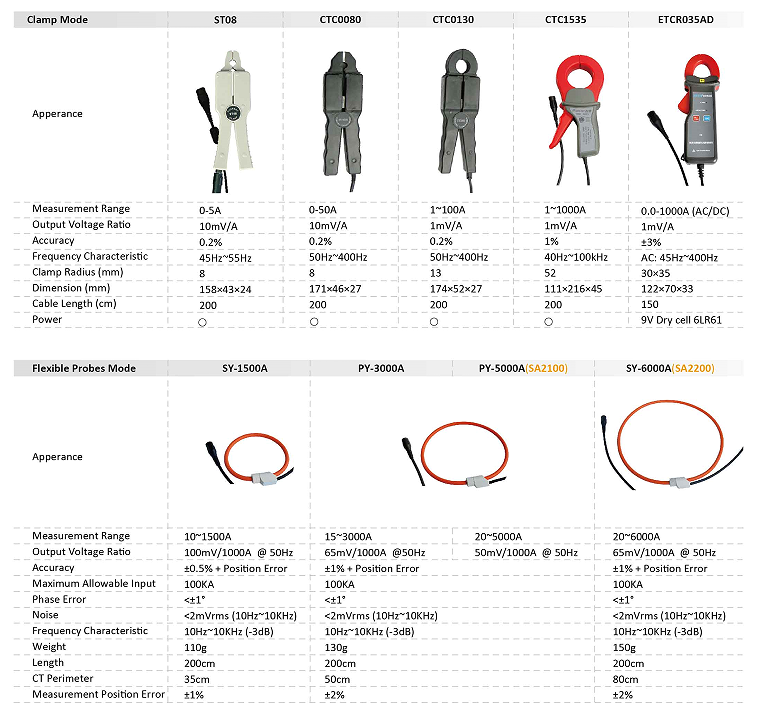

CT Clamps
